Variable Frequency Drive(VFD)

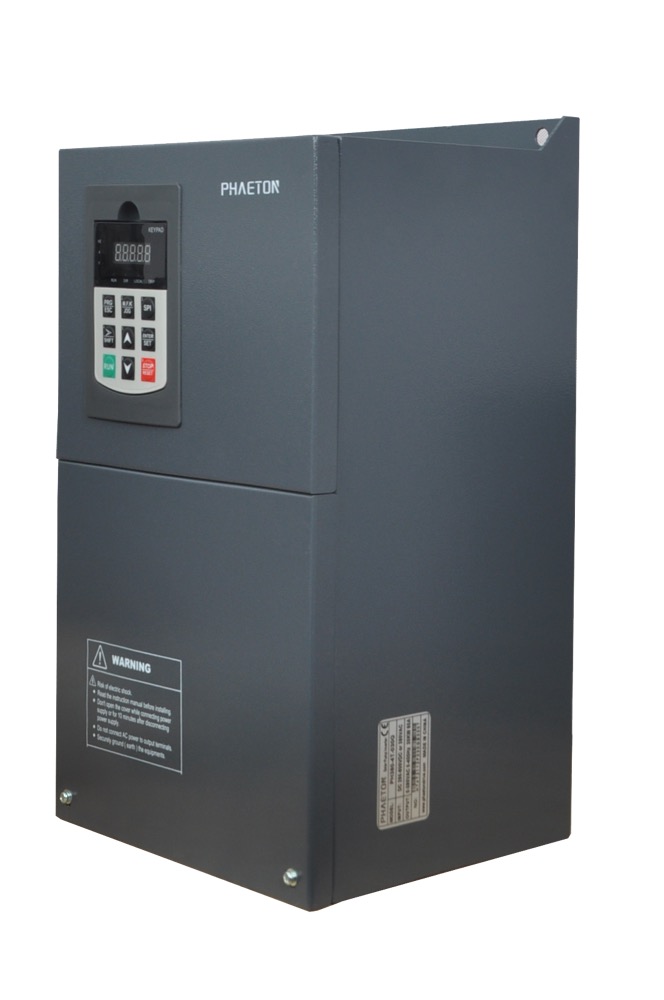

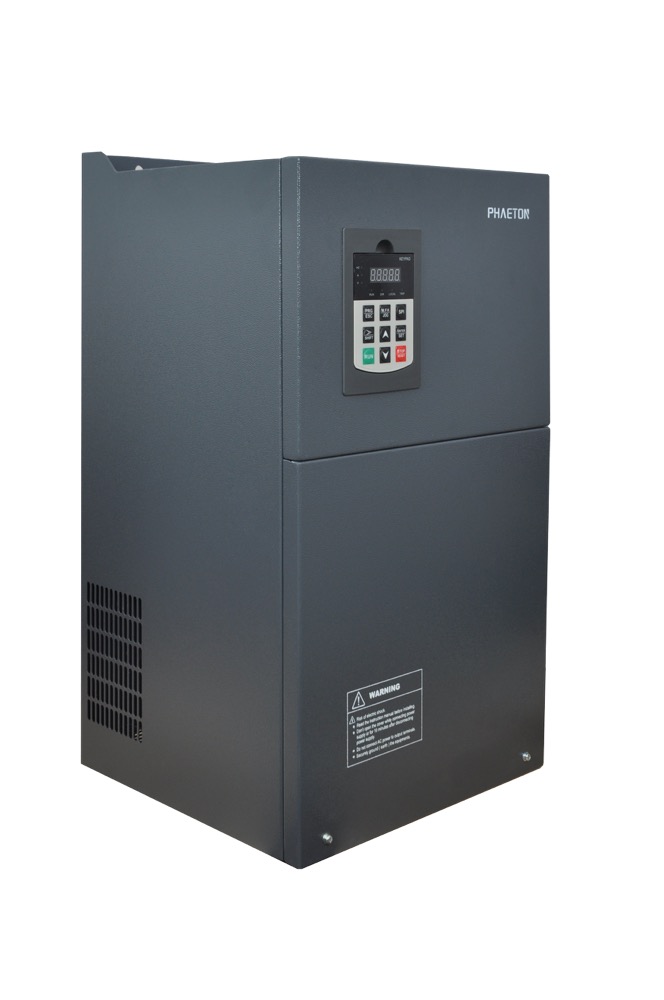

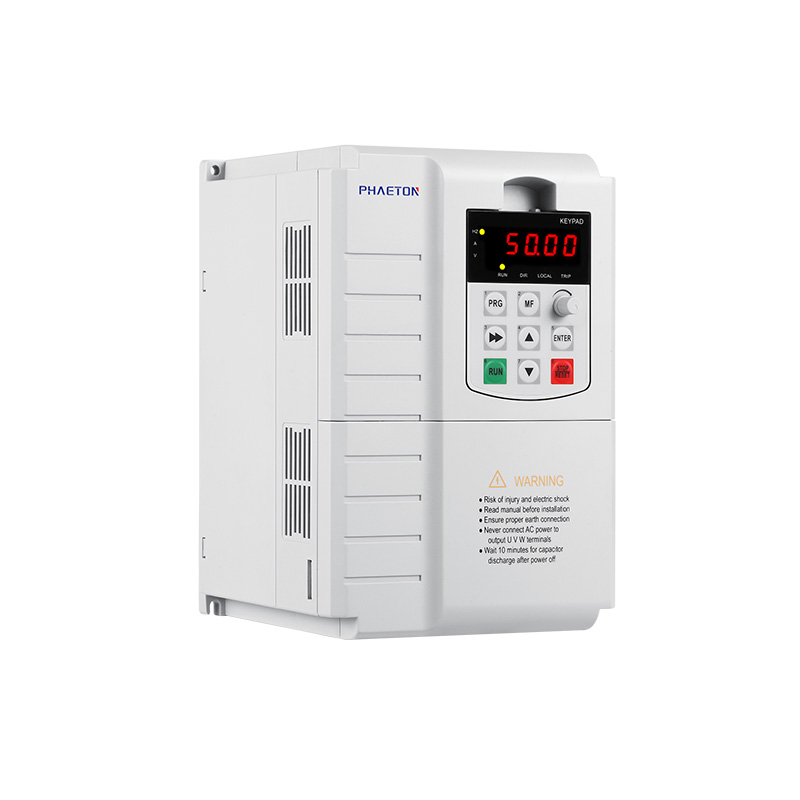

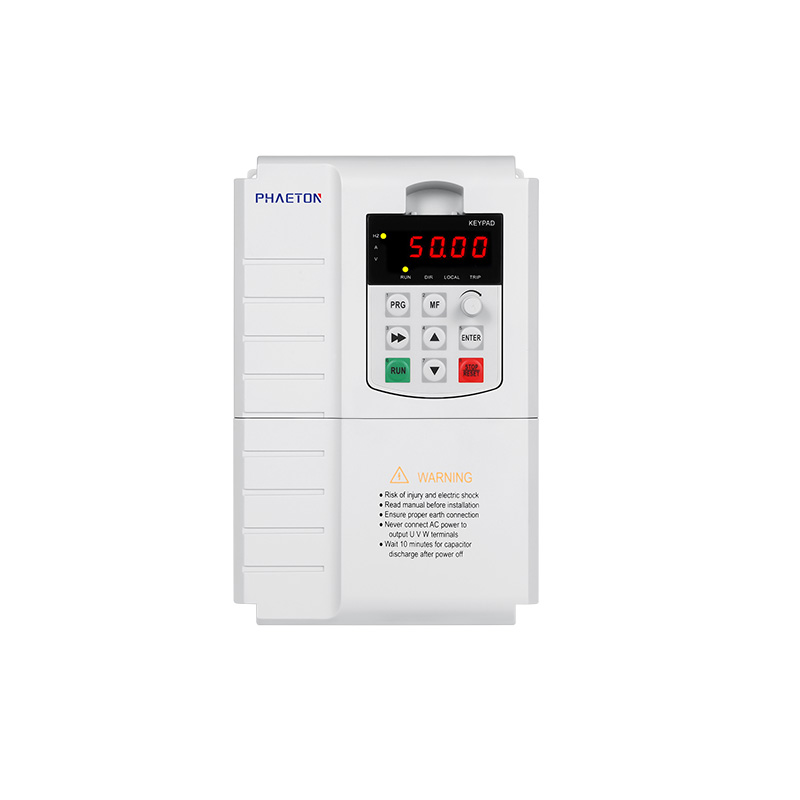

PH100 sensorless vector control frequency inverter is popular used for its great quality and stable performance. This sensorless vector control ac drive is with compact structure design and made of durable components that it can meet various kinds of load challenges and application scenarios.

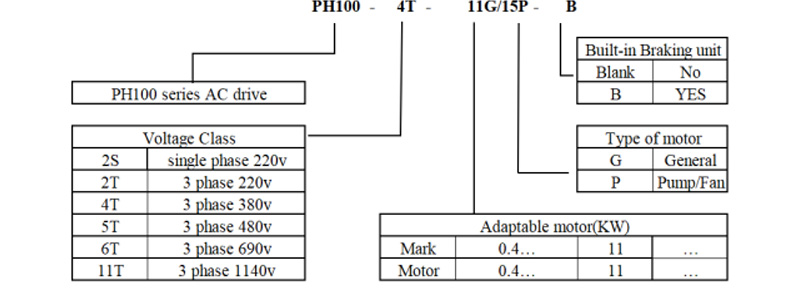

Model explanation:
PH100 sensorless vector control frequency inverter is popular used for its great quality and stable performance. This sensorless vector control ac drive is with compact structure design and made of durable components that it can meet various kinds of load challenges and application scenarios.
Main Features: ( Power range: 0.75-7.5kw 220v, 0.75-560kw 380v)
●Powerful hardware design with full materials
●All series use IGBT module
●Adopts international advanced vector control algorithm
●Use the latest generation TI DSP, its computing speed increases 50%
●Offers 100% starting torque with sensorless vector control
●Complete Protection Function like: under/over voltage, over current, phase missing…
●Ease to Use and rich multiple-function terminal
●Wide input voltage range, up to ±20%
Model list:
| Inverter model | Power capacity | Output current | Fit motor | Packing size | Weight | |
| kVA | A | kW | HP | MM | KG | |
| Single/Three-phase power supply: 220V, 50/60Hz | ||||||
| PH100-2S-0P7GB | 1.5 | 4 | 0.75 | 1 | 252*195*230 | 2 |
| PH100-2S-1P5GB | 3 | 7 | 1.5 | 2 | 2 | |
| PH100-2S-2P2GB | 4 | 10 | 2.2 | 3 | 2.5 | |
| PH100-2S-004GB | 5.9 | 16 | 3.7 | 5 | 315*235*253 | 4.3 |
| PH100-2S-5P5GB | 8.9 | 20 | 5.5 | 7.5 | 4.5 | |
| Power capacity | Output current | Fit motor | Packing size | Weight | ||
| Inverter model | kVA | A | kW | HP | MM | KG |
| Three-phase power supply: 380V, 50/60Hz | ||||||
| PH100-4T-0P7GB/1P5PB | 1.5 | 2.3 | 0.75 | 1 | 252*195*230 | 2 |
| PH100-4T-1P5GB/2P2PB | 3 | 3.7 | 1.5 | 2 | 2 | |
| PH100-4T-2P2GB/004PB | 4 | 5.1 | 2.2 | 3 | 3.2 | |
| PH100-4T-004GB/5P5PB | 5.9 | 10 | 3.7 | 5 | 3.5 | |
| PH100-4T-5P5GB/7P5PB | 8.9 | 13 | 5.5 | 7.5 | 315*235*253 | 4 |
| PH100-4T-7P5GB/011PB | 11 | 17 | 7.5 | 10 | 4.2 | |
| PH100-4T-011GB/ 015PB | 17 | 25 | 11 | 15 | 4.5 | |
| PH100-4T-015GB/018PB | 21 | 32 | 15 | 20 | 395*295*275 | 7.1 |
| PH100-4T-018GB/022PB | 24 | 37 | 18.5 | 25 | 7.5 | |
| PH100-4T-022GB/030PB | 30 | 45 | 22 | 30 | 395*295*275 | 12 |
| PH100-4T-030G/037P | 40 | 60 | 30 | 40 | 640*410*390 | 17 |
| PH100-4T-037G/045P | 57 | 75 | 37 | 50 | 17.5 | |
| PH100-4T-045G/055P | 69 | 91 | 45 | 60 | 700*410*460 | 35 |
| PH100-4T-055G/075P | 85 | 112 | 55 | 75 | 36 | |
| PH100-4T-075G/090P | 114 | 150 | 75 | 100 | 680*485*415 | 45 |
| PH100-4T-090G/110P | 134 | 176 | 90 | 125 | 51 | |
| PH100-4T-110G/132P | 160 | 210 | 110 | 150 | 54 | |
| PH100-4T-132G/160P | 192 | 253 | 132 | 200 | 885*535*370 | 86 |
| PH100-4T-160G/185P | 231 | 304 | 160 | 250 | 90 | |
| PH100-4T-185G/200P | 240 | 340 | 185 | 280 | 98 | |
| PH100-4T-200G/220P | 250 | 377 | 200 | 300 | 104 | |
| PH100-4T-220G/250P | 280 | 426 | 220 | 300 | 1180*760*450 | 180 |
| PH100-4T-250G/280P | 355 | 465 | 250 | 400 | 186 | |
| PH100-4T-280G/315P | 396 | 520 | 280 | 370 | 190 | |
| PH100-4T-315G/355P | 445 | 585 | 315 | 500 | 1280*860*600 | 220 |
| PH100-4T-355G/400P | 500 | 650 | 355 | 420 | 220 | |
| PH100-4T-400G/450P | 565 | 725 | 400 | 530 | 230 | |
| PH100-4T-450G/500P | 630 | 820 | 450 | 600 | 1850*1200*540 | 490 |
| PH100-4T-500G/560P | 700 | 880 | 500 | 660 | 490 | |
| PH100-4T-560G/630P | 784 | 990 | 560 | 760 | 520 | |
