Variable Frequency Drive(VFD)

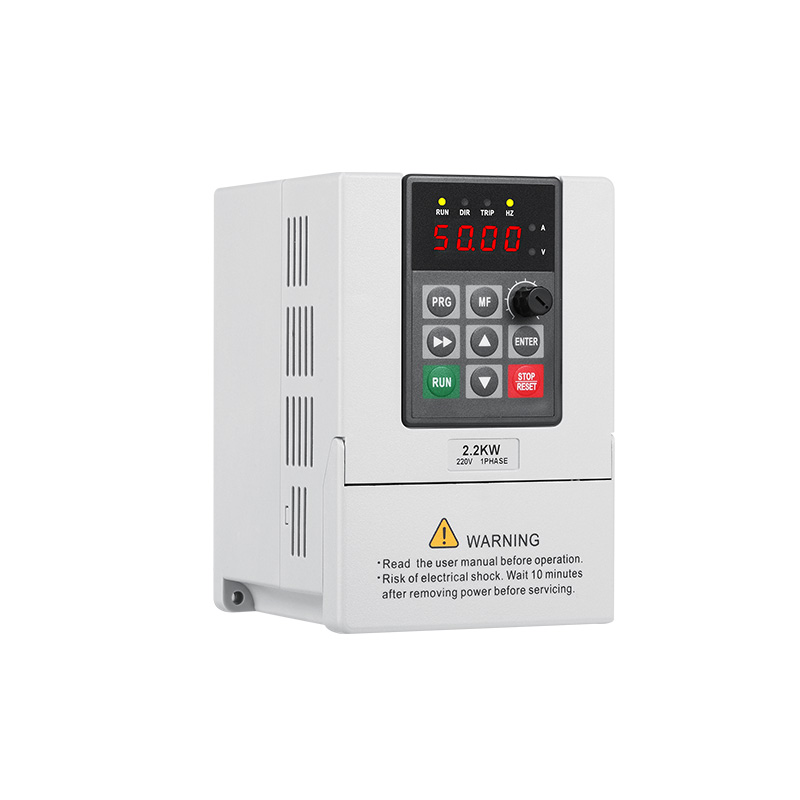

PH10 Vector Control Inverter is positioned used for small power market by using its great quality and stable performance. This vector control ac drive is with compact structure design and made of durable components that it can meet various kinds of load challenges and application scenarios

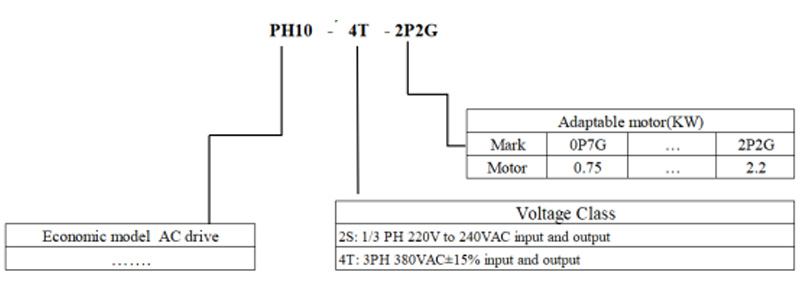

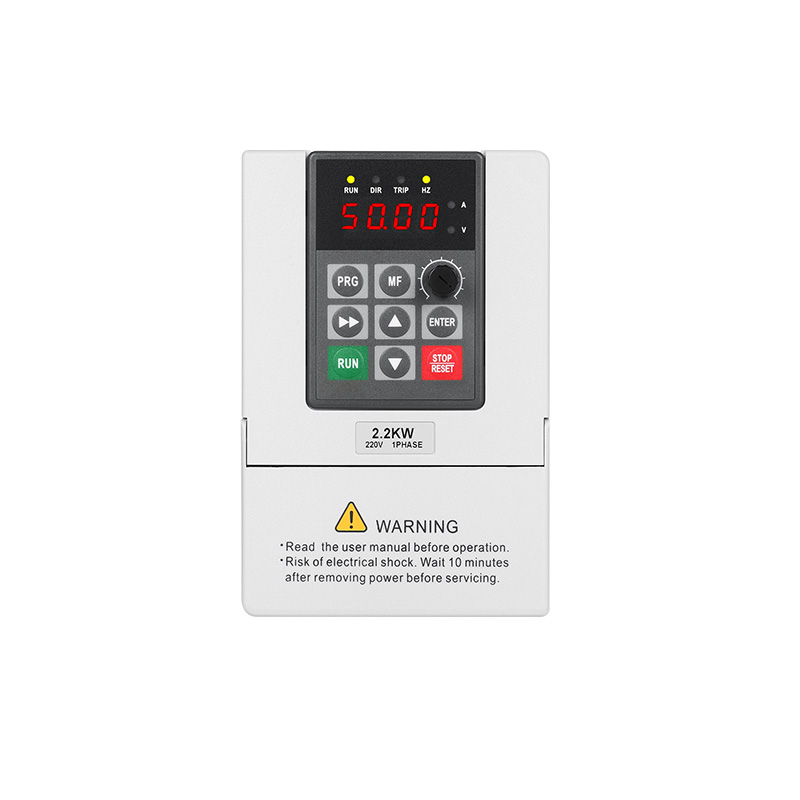

Model explanation:
PH10 Vector Control Inverter is positioned used for small power market by using its great quality and stable performance. This vector control ac drive is with compact structure design and made of durable components that it can meet various kinds of load challenges and application scenarios
Main Features: ( Power range: 0.75-2.2kw 220v, 0.75-4kw 380v)
●Mini Structure
●Adapt DSP CPU design
●Easy maintenance
●Adopts international advanced vector control algorithm
●Complete Protection Function like: under/over voltage, over current, phase missing…

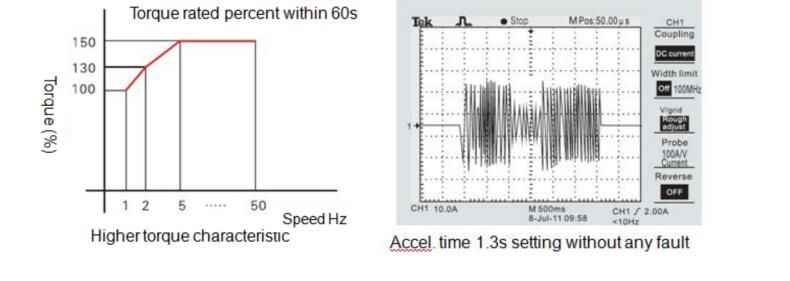

●Excellent Performance
●Wide input voltage range, up to ±20%
Model list:
| Inverter model | Power capacity | Output current | Fit motor | Packing size | Weight | |
| kVA | A | kW | HP | MM | KG | |
| Single/Three-phase power supply: 220V, 50/60Hz | ||||||
| PH10-2S-0P7G | 1.5 | 4 | 0.75 | 1 | 132*85*123.5 | 1 |
| PH10-2S-1P5G | 3 | 7 | 1.5 | 2 | 1 | |
| PH10-2S-2P2G | 4 | 10 | 2.2 | 3 | 1.2 | |
| Power capacity | Output current | Fit motor | Packing size | Weight | ||
| Inverter model | kVA | A | kW | HP | MM | KG |
| Three-phase power supply: 380V, 50/60Hz | ||||||
| PH100-4T-0P7G | 1.5 | 2.3 | 0.75 | 1 | 132*85*123.5 | 1 |
| PH100-4T-1P5G | 3 | 3.7 | 1.5 | 2 | 1 | |
| PH100-4T-2P2G | 4 | 5.1 | 2.2 | 3 | 1.2 | |
| PH100-4T-004G | 5.9 | 10 | 3.7 | 5 | 1.2 | |
Technical Specification:
| Item | Description | ||
| Power input | Voltage, frequency | Single/3-phase 220V 50/60Hz; | |
| Three-phase 380V 50/60Hz; | |||
| Switch-on impact current | Less than the rated current | ||
| Power factor | =0.94 (DC reactor is collocated) | ||
| Standard function | PID control, rotational speed tracking and re-start upon power cutoff; skipping frequency, control of upper and lower frequency limits, procedure operation, multi-section speed, pendulum frequency operation, RS 485, analog output and frequency pulse output | ||
| Protective function | Over-voltage, under-voltage, current amplitude, over-current, overload, electronic heat relay, overheat, over-voltage lose-of-speed, data protection | ||
| Keyboard display | LED display | Display of one-way 4-digit digital pipe | Surveillance of status volume of one frequency converter |
| Fault alarm | Over-voltage, under-voltage, over-current, short circuit, phase deficiency, overload, overheat, over-voltage loss-of-speed, current amplitude, data protection damage, operation status of existing fault and historical fault | ||
| Temperature and humidity | -10 ~ +50°C | ||
| 20% ~ 95%RH | |||
| Vibration | Less than 0.5g below 20 Hz | ||
| Storage temperature | -25 ~ +60°C | ||
| Installation model | Wall-mounted type, cabinet type | ||
| Protective level | IP20 | ||
| Cooling model | Forced air cooling | ||
