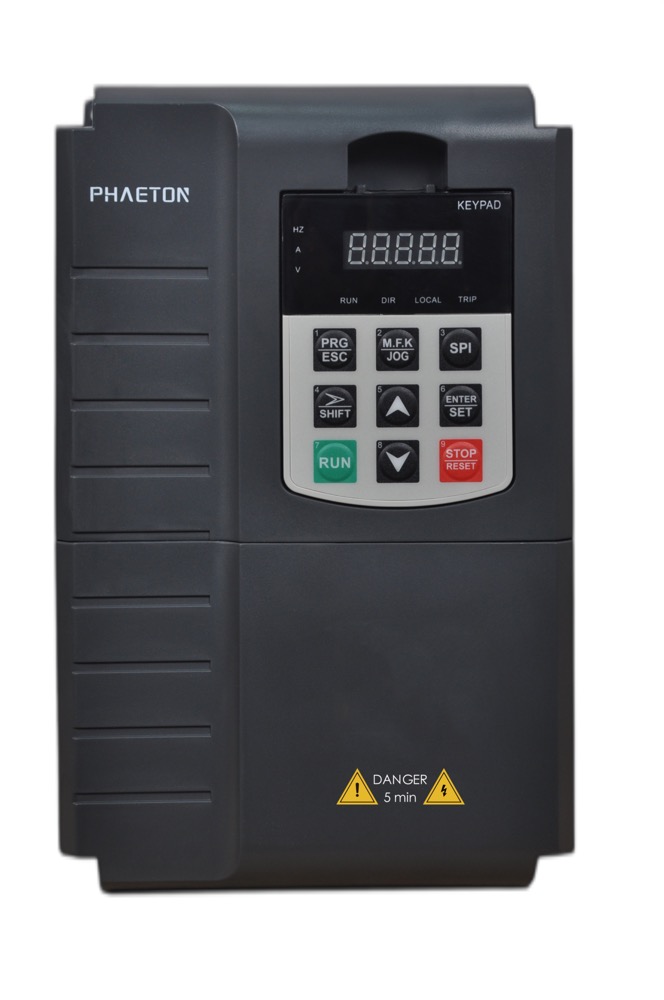

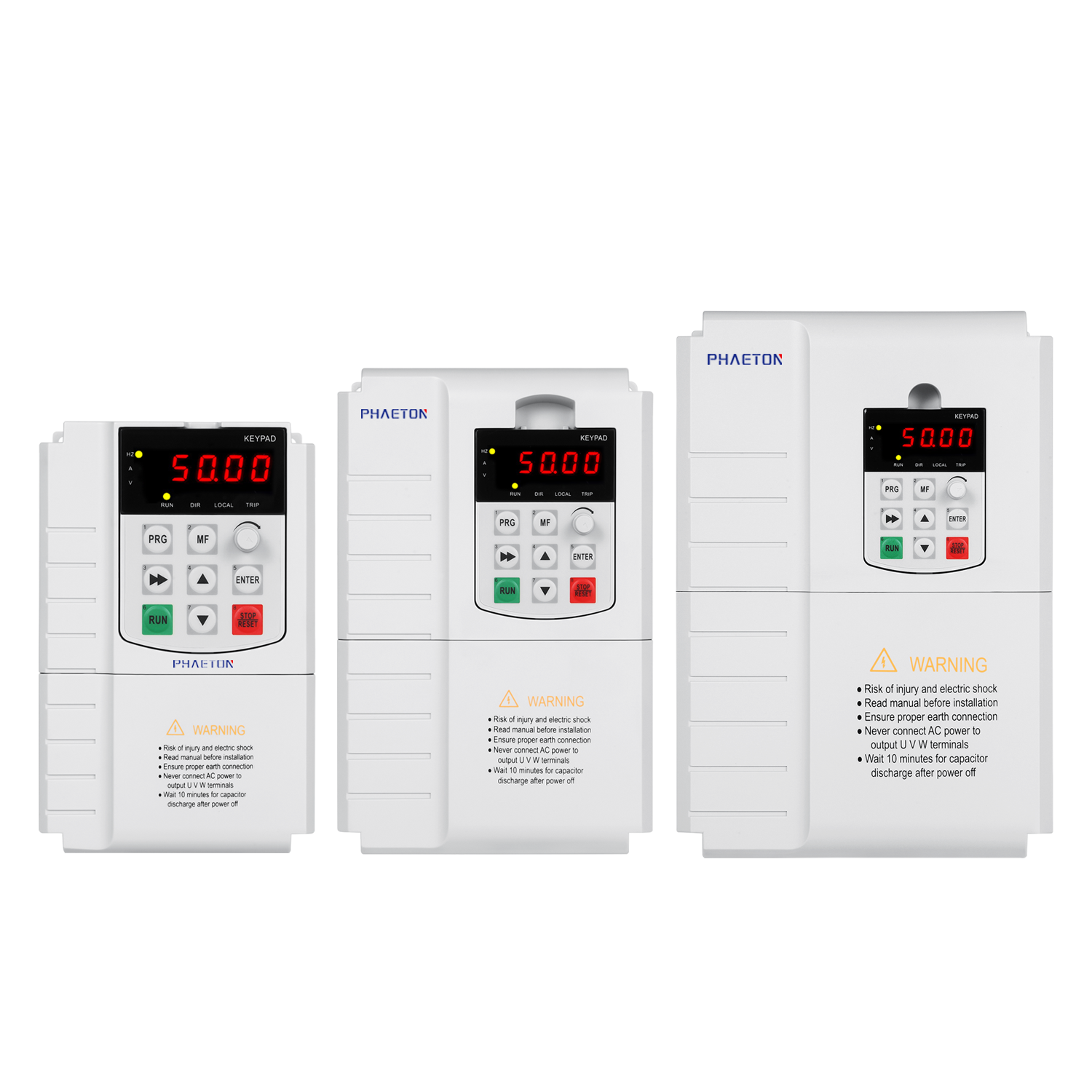

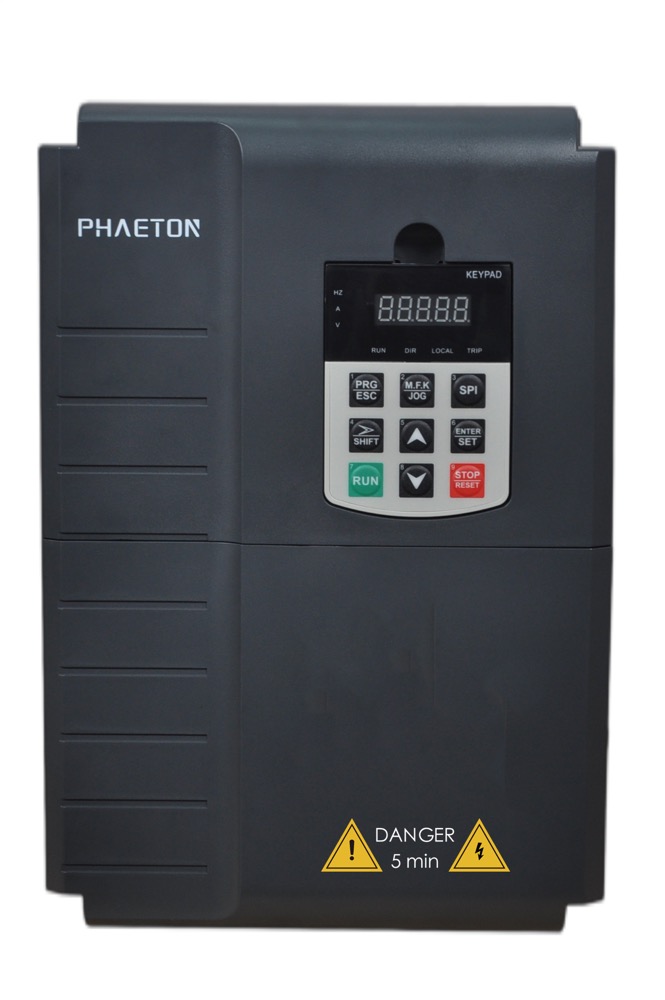

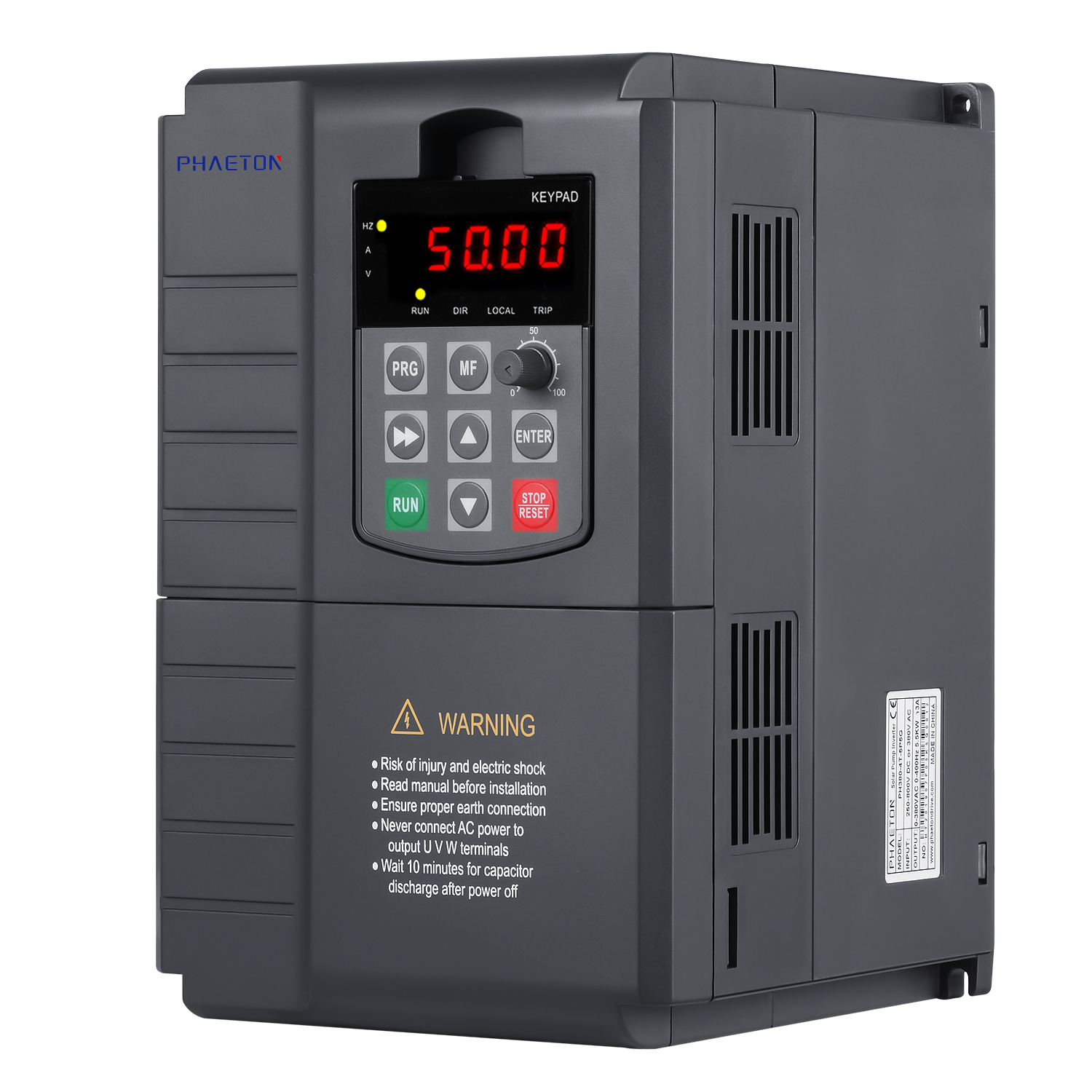

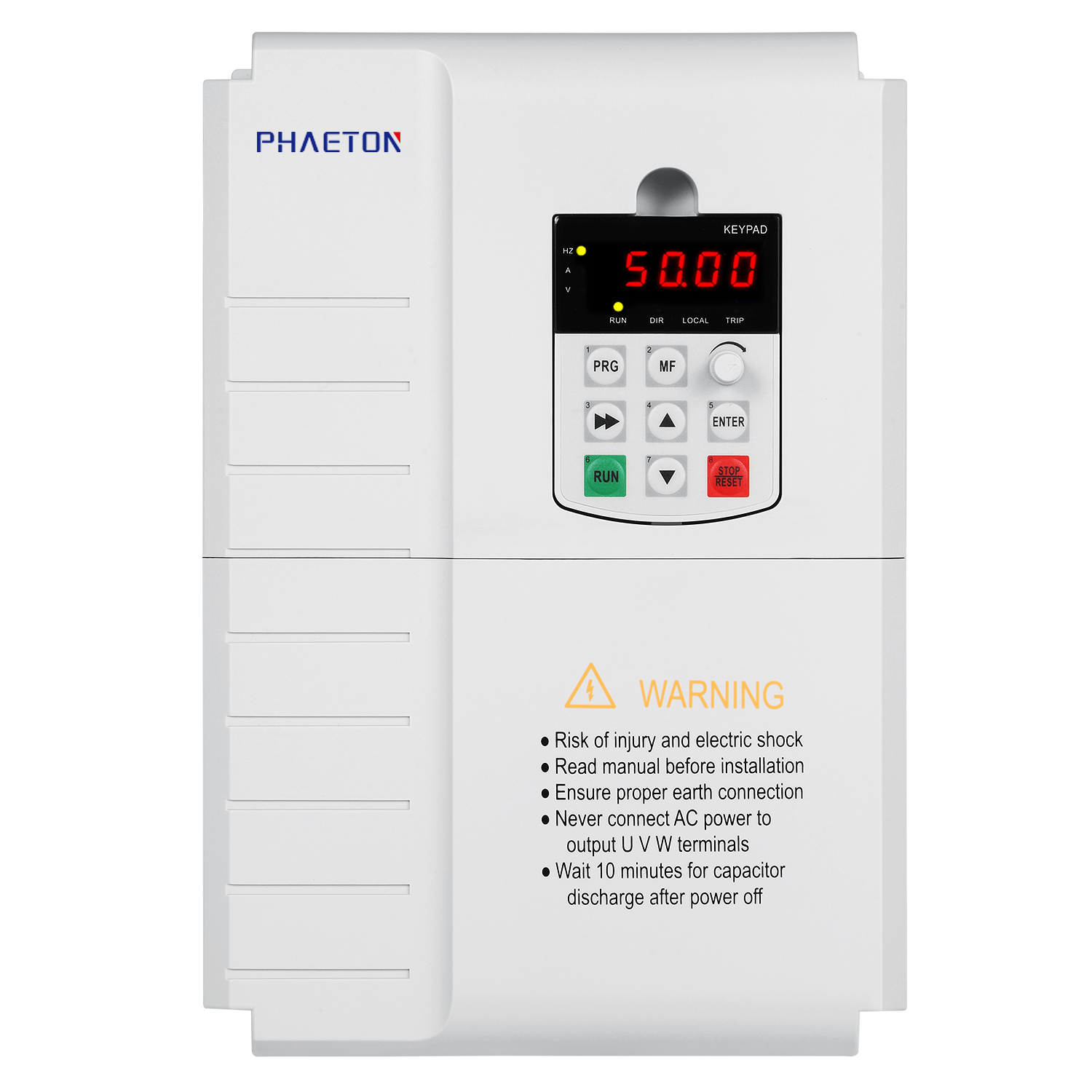

PH380 Solar Pump Inverter

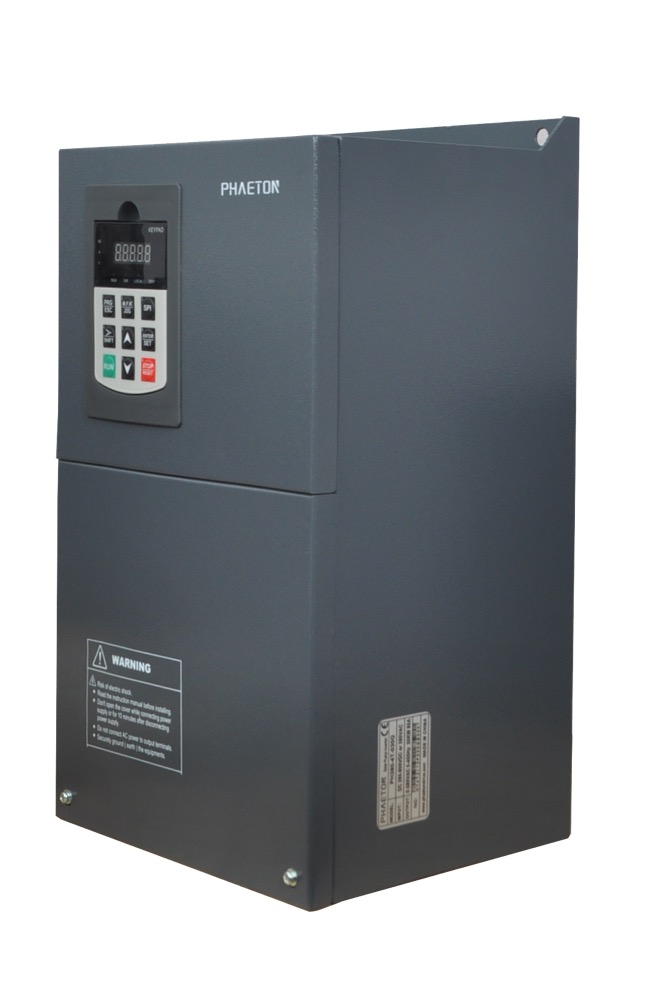

PH380 Solar Pump InverterPH380 Solar Pump InverterPH380 Solar Pump InverterPH380 Solar Pump InverterPH380 Solar Pump Inverter

PH380 Solar Pump Inverter

Share

Power range:


220V -2S model: 0.75-11kw,input 150VDC-450VDC

380V -4T model: 0.75-400KW,input 350V-800VDC

460V -5T model: 0.75-400KW,input 350V-900VDC

Inquire Now Next Product
Products Descrption

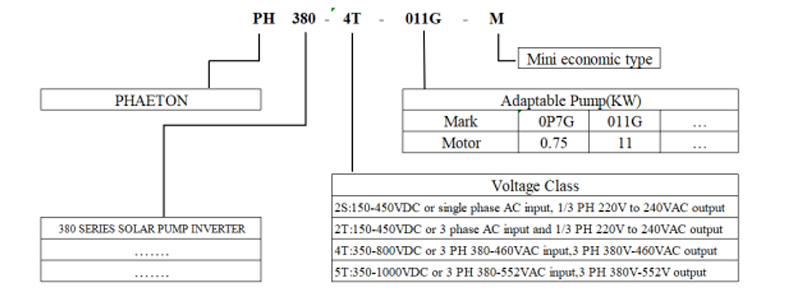

Model explanation:

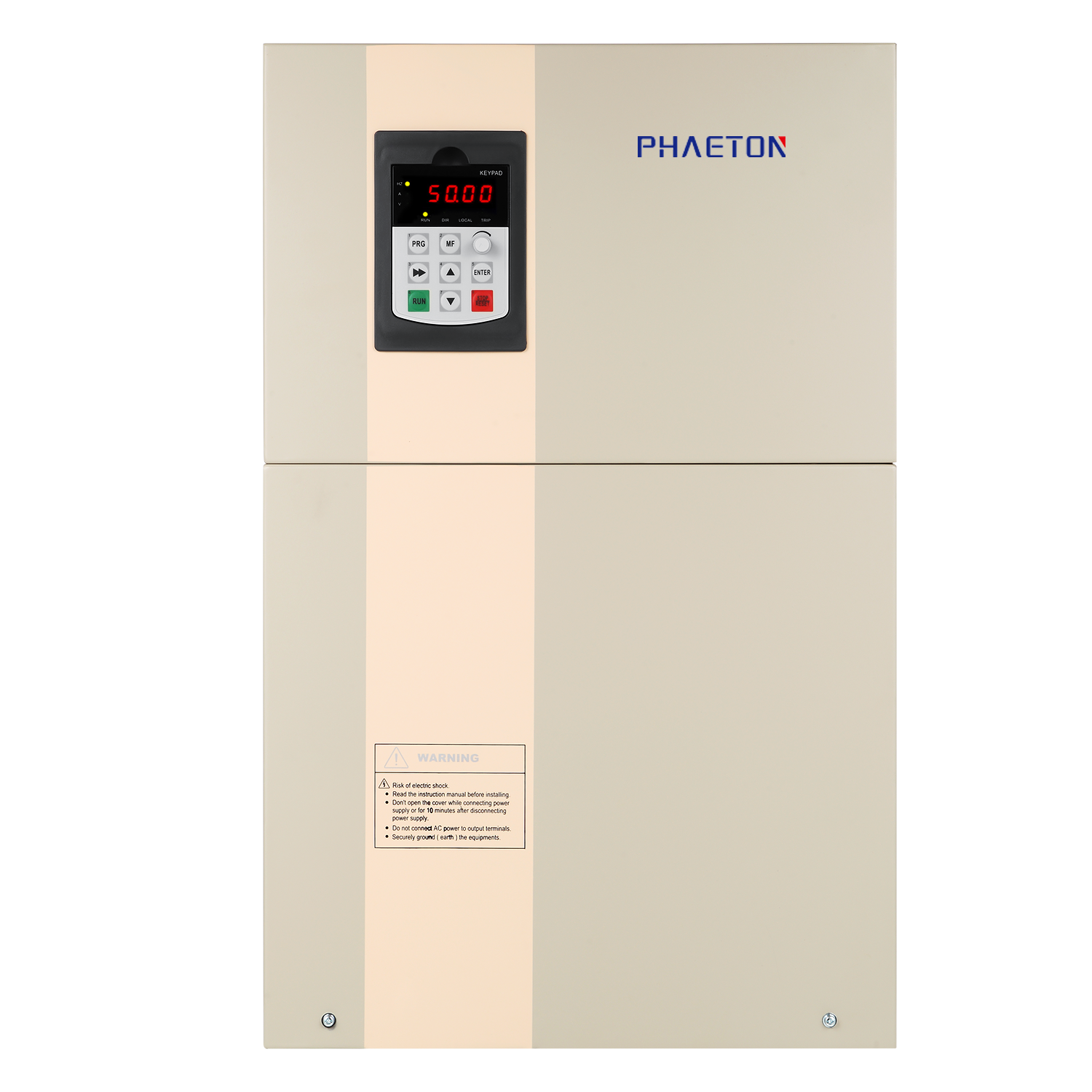

PH380C Solar Pump Inverter with cabinet(customized)

Main Features: ( Power range: 0.75kw-11kw 220v, 0.75kw-400kw 380v)

1 Built-in MPPT function and efficiency up to 99.6%

2 Could drive both AM and PMSM pump

3 Advanced software technology and perfect in driving PMSM pump

4 Perfect stability in output frequency

5 Remote control and monitoring by GPRS system(Available in PC and mobile)

6 Dry run function to protect the pump

7 Automatic start and stop function

8 DC and AC as input power source accepted

9 Low voltage input down to 60VDC input for 110V/220V pump solution

Model Selection List:
SNModel No.Rate currentOutput voltage (3PH AC)Applicable for pumpsExternal of drive size(mm)MPPT voltage (VDC)Weight (kg)
Economic type 2S series: Input 150-450V DC or 200 to 240V AC, VOC 350V DC
1PH380-2S-0P7G-M4A0-220VAC0.75KW132*85*123.5260 to 3751.2
2PH380-2S-1P5G-M7A0-220VAC1.5KW132*85*123.5260 to 3751.2
3PH380-2S-2P2G-M10A0-220VAC2.2KW151*100*127260 to 3751.4
Economic type 4T series: Input 350 to 800V DC or 380 to 460V AC, VOC 620VDC
1PH380-4T-0P7G-M2.5A380V-440V0.75KW132*85*123.5486 to 7501.2
2PH380-4T-1P5G-M3.7A380V-440V1.5KW132*85*123.5486 to 7501.2
3PH380-4T-2P2G-M5A380V-440V2.2KW132*85*123.5486 to 7501.2
4PH380-4T-004G-M10A380V-440V4KW151*100*127486 to 7501.4








General type 2S series: Input 150 to 450V DC or 200 to 240V AC, VOC 350 VDC
1PH380-2S-0P7G4A220V/240V0.75KW252*195*230260 to 3752
2PH380-2S-1P5G7A220V/240V1.5KW252*195*230260 to 3752
3PH380-2S-2P2G10A220V/240V2.2KW252*195*230260 to 3752.5
4PH380-2S-004G16A220V/240V4.0KW315*235*253260 to 3754.3
General type 4T series: Input 350 to 800V DC or 380 to 460V AC, VOC 620V DC
1PH380-4T-0P7G2.5A380V-440V0.75KW252*195*230486 to 7502
2PH380-4T-1P5G3.7A380V-440V1.5KW252*195*230486 to 7503
3PH380-4T-2P2G5A380V-440V2.2KW252*195*230486 to 7503
4PH380-4T-004G10A380V-440V4KW252*195*230486 to 7503
5PH380-4T-5P5G13A380V-440V5.5KW315*235*253486 to 7504.2
6PH380-4T-7P5G17A380V-440V7.5KW315*235*253486 to 7504.3
7PH380-4T-011G22A380V-440V11KW315*235*253486 to 7504.5
8PH380-4T-015G30A380V-440V15KW395*295*275486 to 7507.3
9PH380-4T-018G37A380V-440V18KW395*295*275486 to 7507.5
10PH380-4T-022G45A380V-440V22KW395*295*275486 to 75012
11PH380-4T-030G60A380V-440V30KW640*410*390486 to 75017
12PH380-4T-037G75A380V-440V37KW640*410*390486 to 75017.5
13PH380-4T-045G91A380V-440V45KW700*410*460486 to 75035
14PH380-4T-055G110A380V-440V55KW700*410*460486 to 75036
15PH380-4T-075G150A380V-440V75KW680*485*415486 to 75045
16PH380-4T-093G180A380V-440V93KW680*485*415486 to 75051
17PH380-4T-110G220A380V-440V110KW680*485*415486 to 75054
18PH380-4T-132G250A380V-440V132KW885*535*370486 to 75086
19PH380-4T-160G310A380V-440V160KW885*535*370486 to 75090
22PH380-4T-***G***380V-440V185-400KW*******486 to 750***


Technical Specifications:
Recommended MPPT voltage rangeVmpp 280 to 375VDC for 2S model ( 150V to 450VDC input, 3PH 220 to 240VAC output)
Vmpp 486 to 750 VDC for 4T model ( 250V to 800VDC input, 3PH 380 to 440VAC output)
Recommended input voltage (Voc and Vmpp)Voc 355V DC, Vmpp 310V DC for 2S model or 220V AC pumps
Voc 620V DC, Vmpp 540V DC for 4T model or 380V AC pumps
Motor typeControl for permanent magnet synchronous motor(PMSM) and asynchronous motor(AM)
Input powerDC power from solar arrays or AC grid power
Maximum DC power input450VDC for 220V AC Pump / 800VDC for 380V AC Pump
Rated output voltage3-phase 220V or 3-phase 380V/440V
Output frequency range0~50/60Hz
MPPT efficiency99.60%
Ambient temperature range-10℃TO 50℃
Solar pump control special performanceMPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating
Protection functionPhase loss protection, phase short circuit protection, ground to phase circuit protection, input and output short circuit protection. Stall protection
Protection degreeIP20-Air force cooling
Running modeMPPT, CVT, variable frequency mode
AltitudeBelow 1000m; above 1000m, derated 1% for every additional 100m
StandardCE certificate. Design based on vector control inverter

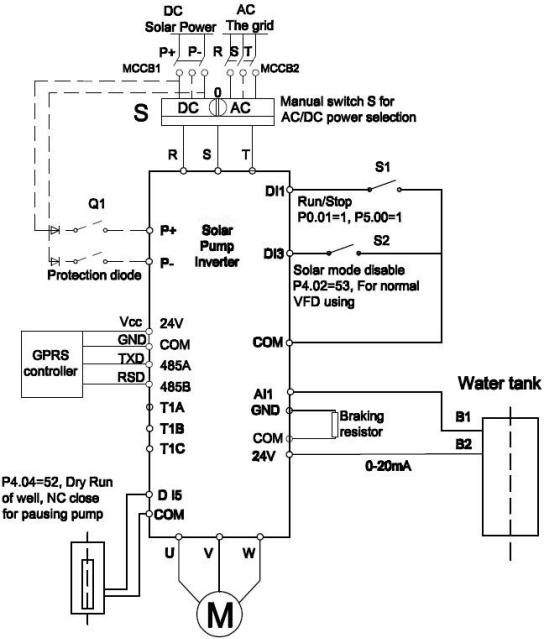

Diagram:

PH380C Solar Pump Inverter with cabinet(customized)
