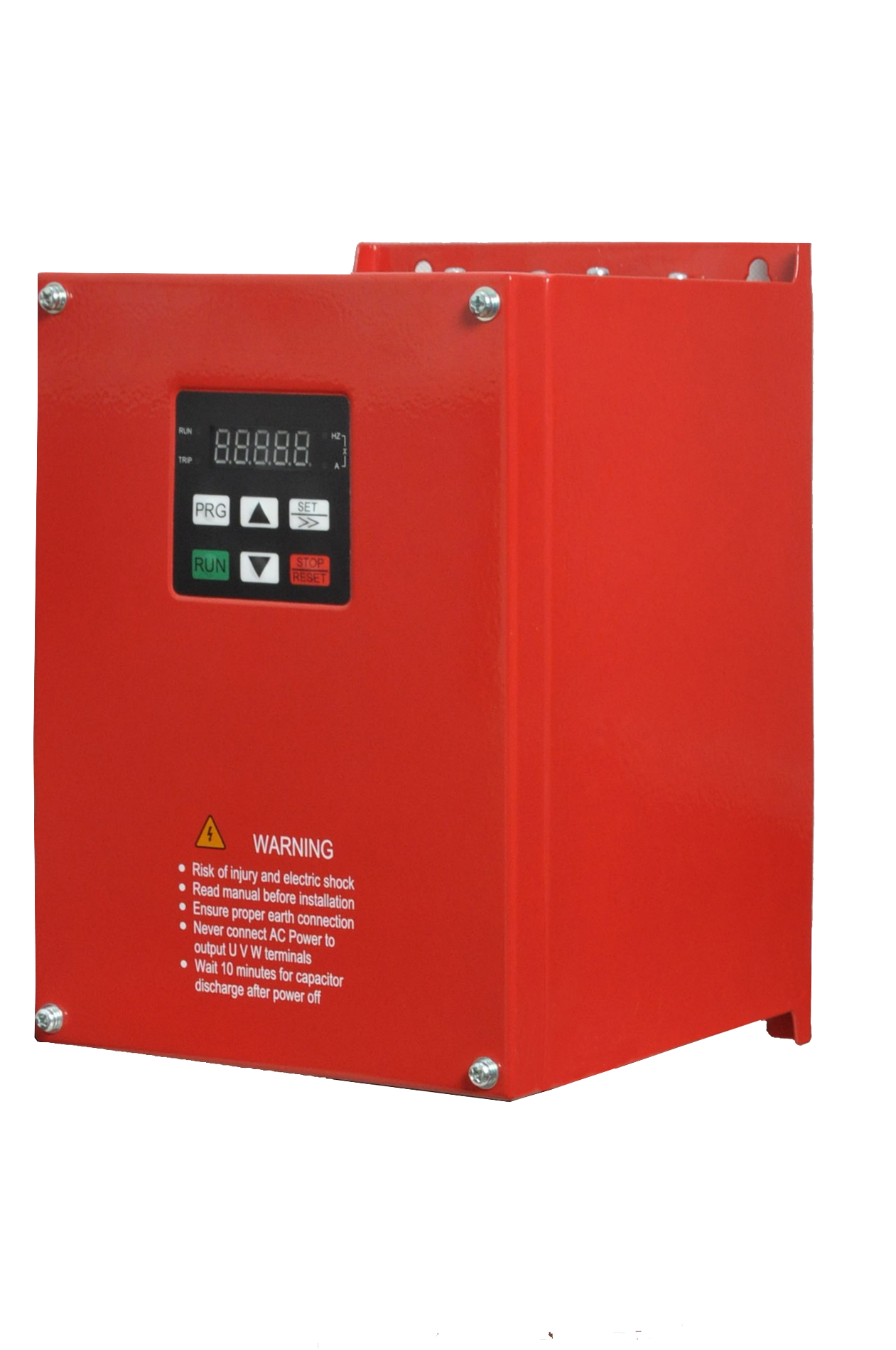

Solar Pump Inverter
Home >> Products >> Solar Pump Inverter
Main Features:
1-IP54 series solar pump inverter
2-High IP degree protection for sand,water etc
3-Big size and big fans for good cooling

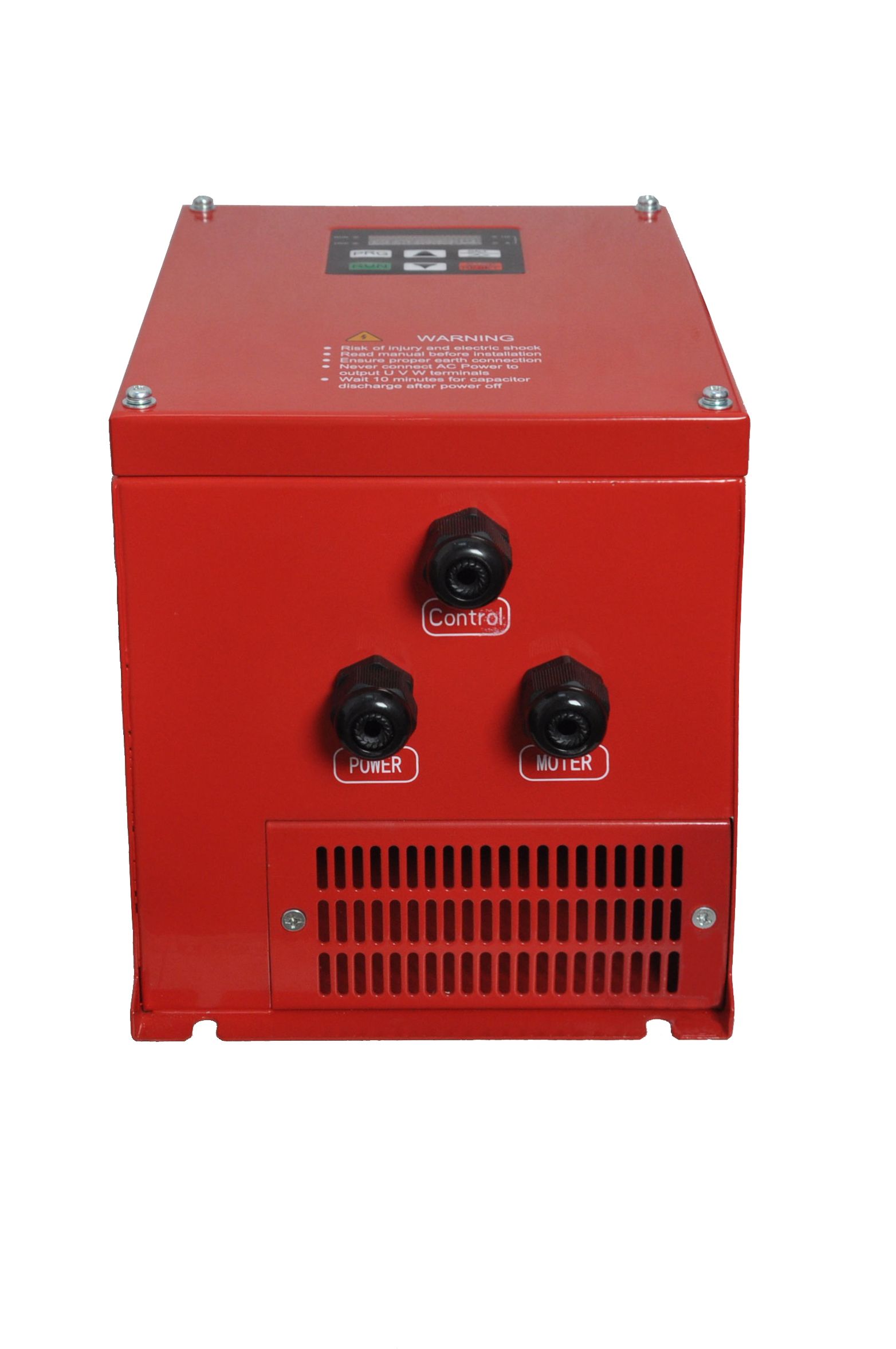

4-Easy for wiring and maintaince
Power range:
For 220v pump: 1.5-11kw
For 380-480v pump: 1.5-11kw 0.75-30kw 380v
Model explanation:
Solar Pump Inverter Features:
Ø Maximum power point tracking (MPPT) with fast response speed and stable operation efficiency> 99%
Ø Suits for most 3 phase AC pumps and AC PMSM high efficiency pumps
Ø The working voltage of solar panel can set by manual or MPPT automatically tracking
Ø Compatible with dual power input, AC grid and DC power supply input
Ø Built in automatic sleep-wake up function,
Ø Dry run (under load ) protection
Ø Motor maximum current protection
Ø Low input power protection
Ø Lowest stop frequency protection
Ø The PQ (power/flow) performance curve enables calculating the flow output from the pump
Ø Digital control for fully automatic operation, data storage and protective functions
Ø Intelligent power module (IPM) for the main circuit
Ø LED display operating panel and support remote control
Ø Low water probe sensor, and water level control function
Ø Strong lightning protection
Ø Ambient temperature for using: -10 to +50˚C.
ü Clock relay card for timing stop and stop control
Ø LCD keypad as optional
Ø Input VOC auto-detect function
Model Selection:
PH380-XX-S 2S series: Input 150-450V DC or 200 to 240V AC, VOC 350V DC | |||||||
1 | PH380-2S-1P5G-S | 7A | 0-256VAC | 1.5KW | 245**160*180 | 260 to 375 | 5 |
2 | PH380-2S-2P2G-S | 10A | 0-256VAC | 2.2KW | 245**160*180 | 260 to 375 | 5 |
3 | PH380-2S-004G-S | 16A | 0-256VAC | 4.0KW | 320*215*190 | 260 to 375 | 7.5 |
PH380-XX-S 4T series : Input 350 to 800V/900V DC or 380 to 480V AC, VOC 620V DC | |||||||
1 | PH380-4T-2P2G-S | 5A | 0-480VAC | 2.2KW | 245**160*180 | 486 to 750 | 5 |
2 | PH380-4T-004G-S | 10A | 0-480VAC | 4KW | 245**160*180 | 486 to 750 | 5 |
3 | PH380-4T-5P5G-S | 13A | 0-480VAC | 5.5KW | 320*215*190 | 486 to 750 | 7.5 |
4 | PH380-4T-7P5G-S | 17A | 0-480VAC | 7.5KW | 320*215*190 | 486 to 750 | 7.5 |
5 | PH380-4T-011G-S | 25A | 0-480VAC | 11KW | 320*215*190 | 486 to 750 | 7.5 |
6 | PH380-4T-015G-S | 30A | 0-480VAC | 15KW | 410*275*200 | 486 to 750 | 13 |
7 | PH380-4T-018G-S | 37A | 0-480VAC | 18KW | 410*275*200 | 486 to 750 | 13 |
8 | PH380-4T-022G-S | 45A | 0-480VAC | 22KW | 410*275*200 | 486 to 750 | 13 |
