220V 5HP 4KW 17A single phase solar pump inverter

Model NO :

PH380-2S-004G

220V 5HP 4KW 17A Single phase solar pump inverter drives 220v single phase pump and 220v 3phase pump both well, 2S series model

Quantity :

add to cart

Contact Now

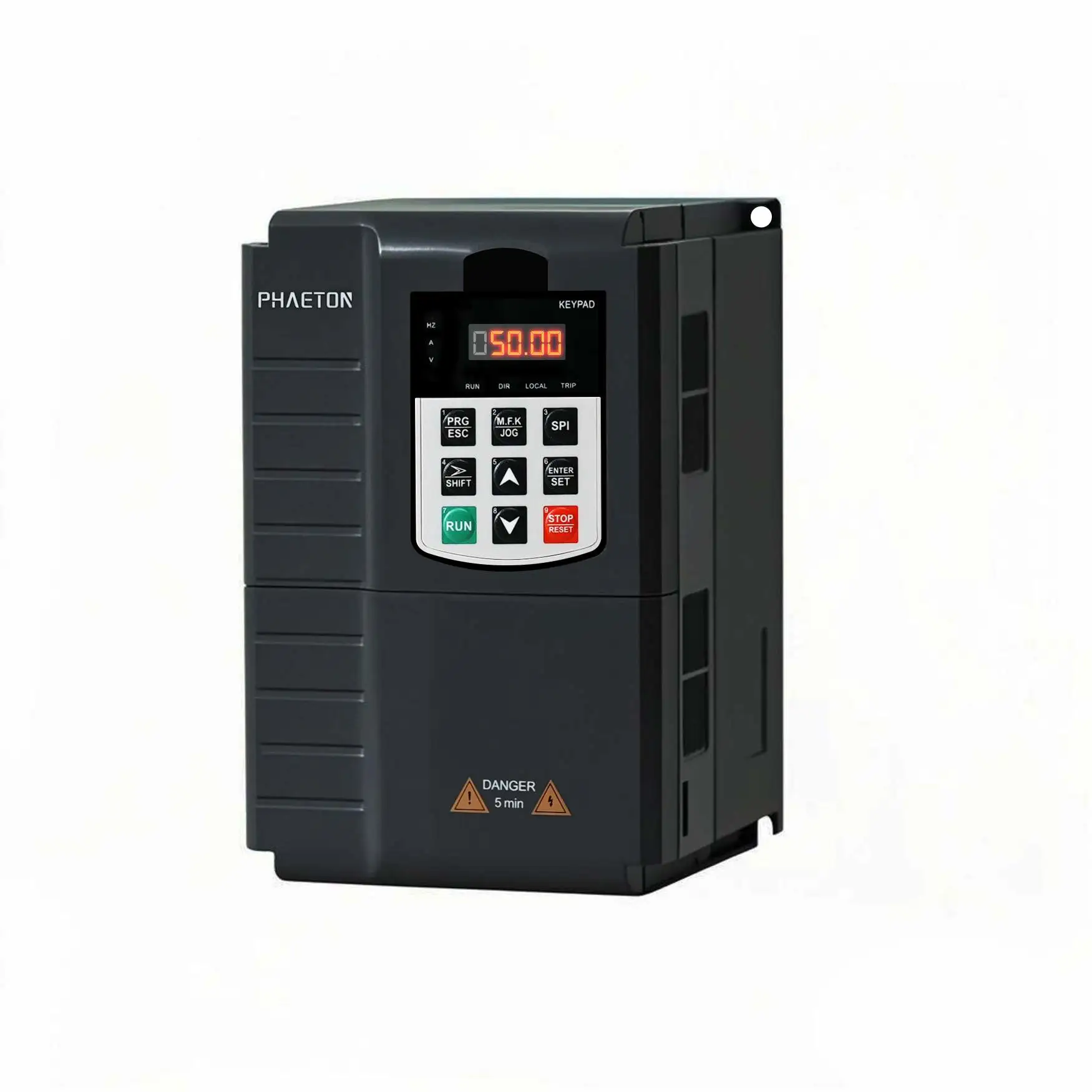

PHAETON 220V 5HP 4KW 17A single phase solar pump inverter

Brand: PHAETON

Model No.: PH380-2S-004G

Input Voltage 150V-450VDC, 1phase 220VAC

Output Voltage: Single phase 220VAC or 3phase 220VAC

Power: 4KW

Current: 17A

Solar Panels selection: Voc 380VDC.

Motor selection: Singel phase and 3phase 220V 1.5kw 2.2kw 3.7kw motor, pump

Certificate: CE, IEC.

The main features for PH380 series solar pump inverters:

1. Hybrid function to accept solar DC and grid AC input at same time, Grid AC automatic compensation.

2. Wide input voltage range:

220V model: DC 150-450V ( DC 80-450V for 110V, 160V motor).

380V model: DC 350-800V. 440V, 480V mode: DC 250-900V.

3. Drives well 220V single phase pump, 3phase pump.

4. Stable running and low frequency fluctuation.

5. All-round protection and inverter no burn.

6. Automatically start and stop function.

7. Adapt to various pumps, like AM, PMSM, submersible pump, surface pump etc.

Wiring explanation for water and dry run sensor:

(1) Connect 2 wires of float ball sensor to DI4 and COM for water tank level fulling detecting,

and set P4-03=51( float ball NO relay alarm). When water level reached to sensor detecting,

the normal open (NO) relay point will be activated, invereter will stop pumping, and sent a A.FuL alarm.

(2) Connect 2 wires of sensor of dry run sensor of well to DI5 and GND, and set P4-04=52 ( dry run NC relay alarm).

It will sent alarm A.LLd and stop pumping when lack of water in well for dry run protection.

(3) It is also enable to connect analog ( 0-10VDC, or 0/4-20mA) water level sensor for water tank leveling detecting.

(4) Connecting 2 wires of 0/4-20mA analog sensor to AI1 and 24VDC terminals of inverter,

and short connect COM and GND terminals for constructing a loop circuit.

PHAETON PH380 solar pump inverter Model Number:

S.N.	Model Number	Current (A)	Voltage (V)	Power (KW)	Measurement (MM)	Suggest VOC (VDC)	G.W. (Kg)
PH380-2S series: 150-450VDC, 1phase 220VAC input, 1/3phase 220VAC output
1	PH380-2S-1P5G-M	7A	0-250VAC	1.5KW	185118153.8	260 to 375	2
2	PH380-2S-2P2G-M	10A	0-250VAC	2.2KW	185118153.8	260 to 375	2
3	PH380-2S-004G	17A	0-250VAC	4.0KW	247160175	260 to 375	4
4	PH380-2S-5P5G	25A	0-250VAC	5.5KW	247160175	260 to 375	4
PH380-4T series: 250-800V/900VDC input, 3phase 0-380V,440/480VAC output
1	PH380-4T-2P2G-M	7A	0-480VAC	2.2KW	185118153.8	486 to 750	2
2	PH380-4T-004G	10A	0-480VAC	4KW	185118153.8	486 to 750	3
3	PH380-4T-5P5G	13A	0-480VAC	5.5KW	247160175	486 to 750	4
4	PH380-4T-7P5G	17A	0-480VAC	7.5KW	247160175	486 to 750	4
5	PH380-4T-011G	25A	0-480VAC	11KW	247160175	486 to 750	4.5
6	PH380-4T-015G	32A	0-480VAC	15KW	320220197.3	486 to 750	7
7	PH380-4T-018G	37A	0-480VAC	18KW	320220197.3	486 to 750	7.5
8	PH380-4T-022G	45A	0-480VAC	22KW	320220197.3	486 to 750	7.5
9	PH380-4T-030G	60A	0-480VAC	30KW	480260215	486 to 750	17
10	PH380-4T-037G	75A	0-480VAC	37KW	480260215	486 to 750	17
11	PH380-4T-045G	91A	0-480VAC	45KW	575320310	486 to 750	35
12	PH380-4T-055G	110A	0-480VAC	55KW	575320310	486 to 750	36
13	PH380-4T-075G	150A	0-480VAC	75KW	620380310	486 to 750	45
14	PH380-4T-093G	180A	0-480VAC	93KW	620380310	486 to 750	48
15	PH380-4T-110G	220A	0-480VAC	110KW	620380310	486 to 750	50
16	PH380-4T-132G	250A	0-480VAC	132KW	620380310	486 to 750	50
17	PH380-4T-160G	310A	0-480VAC	160KW	817500348	486 to 750	94
18	PH380-4T-185G	340A	0-480VAC	185KW	817500348	486 to 750	95
19	PH380-4T-200G	380A	0-480VAC	200KW	817500348	486 to 750	96
20	PH380-4T-XXXG	415-800A	0-480VAC	220-450KW	1200600450	486 to 750	150
20	PH380-4T-450G	415-800A	0-480VAC	220-450KW	1200600450	486 to 750	150

What is a Solar Pump Inverter?

A solar pump inverter is a specialized device that converts the DC power generated by solar panels into AC power to drive water pumps. It optimizes energy usage based on sunlight intensity, ensuring efficient water pumping without the need for batteries or grid electricity.

PHAETON solar pump inverter Key Features:

MPPT (Maximum Power Point Tracking) – 99% efficiency
Energy-efficient – Directly powers pumps using solar energy.
Battery-free operation – Reduces system costs and maintenance.
All kind of protections – Dry run, water tank detection, overload, overcurrent protections to protect motor and inverter
Wide applications – Used in irrigation, livestock watering, and remote water supply.

Example:

A: What's the advantage of a solar pump inverter compared to a traditional pump system?
B: It eliminates reliance on grid electricity or diesel generators, reducing costs and environmental impact. Plus, it adjusts pump speed based on solar power availability.

A: Can it work on cloudy days?
B: Yes, but with reduced efficiency. so select PHAETON hybrid solar pump inverter, which can solar DC and Grid AC inup at same time and compensation can be achieved when lacking of solar power. but solar dc is priority.

PHAETON PH380 solar pump inverter Model Number:

S.N.	Model Number	Current (A)	Voltage (V)	Power (KW)	Measurement (MM)	Suggest VOC (VDC)	G.W. (Kg)
PH380-2S series: 150-450VDC, 1phase 220VAC input, 1/3phase 220VAC output
1	PH380-2S-1P5G-M	7A	0-250VAC	1.5KW	185118153.8	260 to 375	2
2	PH380-2S-2P2G-M	10A	0-250VAC	2.2KW	185118153.8	260 to 375	2
3	PH380-2S-004G	17A	0-250VAC	4.0KW	247160175	260 to 375	4
4	PH380-2S-5P5G	25A	0-250VAC	5.5KW	247160175	260 to 375	4
PH380-4T series: 250-800V/900VDC input, 3phase 0-380V,440/480VAC output
1	PH380-4T-2P2G-M	7A	0-480VAC	2.2KW	185118153.8	486 to 750	2
2	PH380-4T-004G	10A	0-480VAC	4KW	185118153.8	486 to 750	3
3	PH380-4T-5P5G	13A	0-480VAC	5.5KW	247160175	486 to 750	4
4	PH380-4T-7P5G	17A	0-480VAC	7.5KW	247160175	486 to 750	4
5	PH380-4T-011G	25A	0-480VAC	11KW	247160175	486 to 750	4.5
6	PH380-4T-015G	32A	0-480VAC	15KW	320220197.3	486 to 750	7
7	PH380-4T-018G	37A	0-480VAC	18KW	320220197.3	486 to 750	7.5
8	PH380-4T-022G	45A	0-480VAC	22KW	320220197.3	486 to 750	7.5
9	PH380-4T-030G	60A	0-480VAC	30KW	480260215	486 to 750	17
10	PH380-4T-037G	75A	0-480VAC	37KW	480260215	486 to 750	17
11	PH380-4T-045G	91A	0-480VAC	45KW	575320310	486 to 750	35
12	PH380-4T-055G	110A	0-480VAC	55KW	575320310	486 to 750	36
13	PH380-4T-075G	150A	0-480VAC	75KW	620380310	486 to 750	45
14	PH380-4T-093G	180A	0-480VAC	93KW	620380310	486 to 750	48
15	PH380-4T-110G	220A	0-480VAC	110KW	620380310	486 to 750	50
16	PH380-4T-132G	250A	0-480VAC	132KW	620380310	486 to 750	50
17	PH380-4T-160G	310A	0-480VAC	160KW	817500348	486 to 750	94
18	PH380-4T-185G	340A	0-480VAC	185KW	817500348	486 to 750	95
19	PH380-4T-200G	380A	0-480VAC	200KW	817500348	486 to 750	96
20	PH380-4T-XXXG	415-800A	0-480VAC	220-450KW	1200600450	486 to 750	150
20	PH380-4T-450G	415-800A	0-480VAC	220-450KW	1200600450	486 to 750	150
