1phase 220V 2.2KW 3HP VFD frequency inverter

Model NO :

PH100-2S-2P2G-M

1phase 220V 2.2KW 3HP 10A Variable frequency dirve PHAETON VFD from 0.75KW too 630KW for motor speed control

Quantity :

add to cart

Contact Now

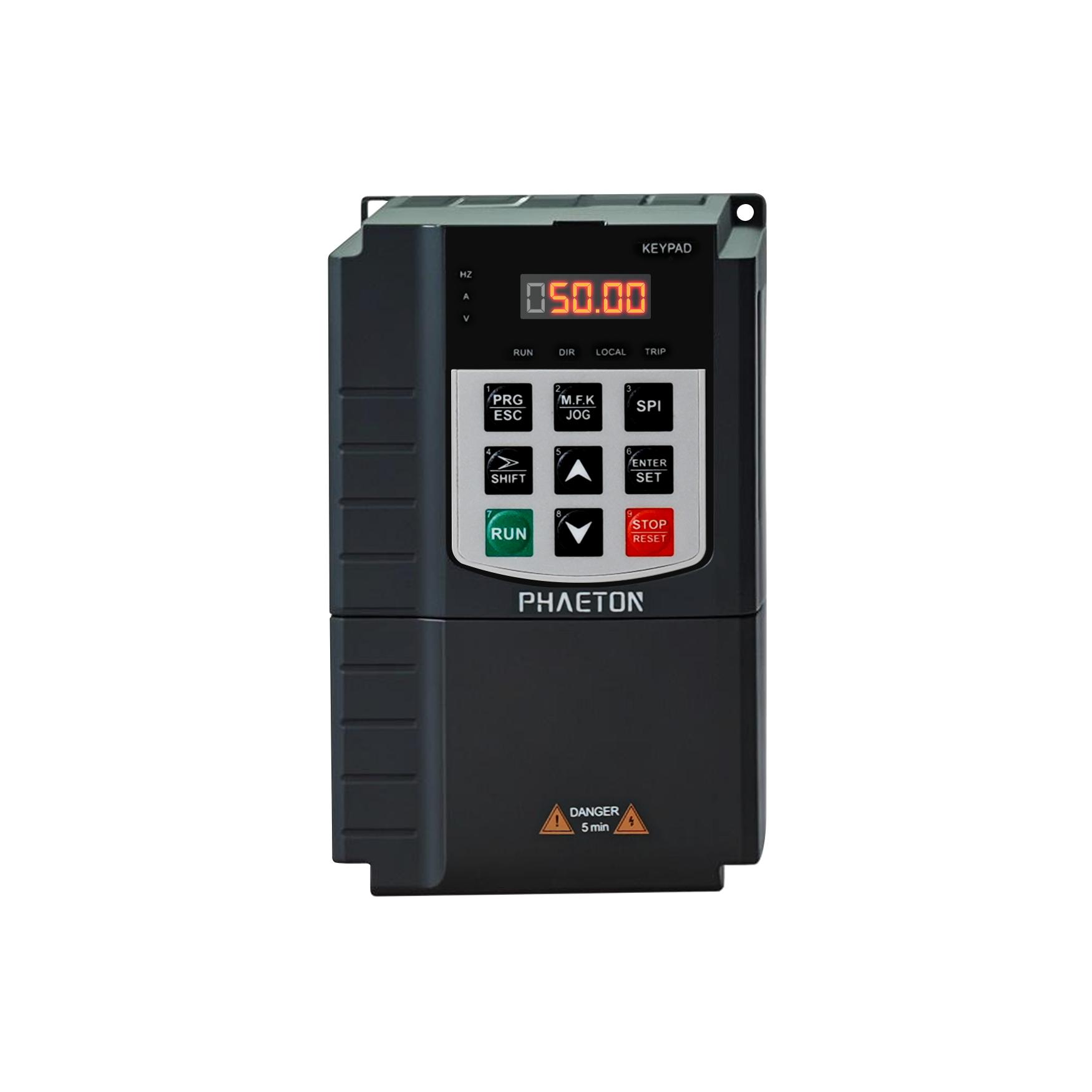

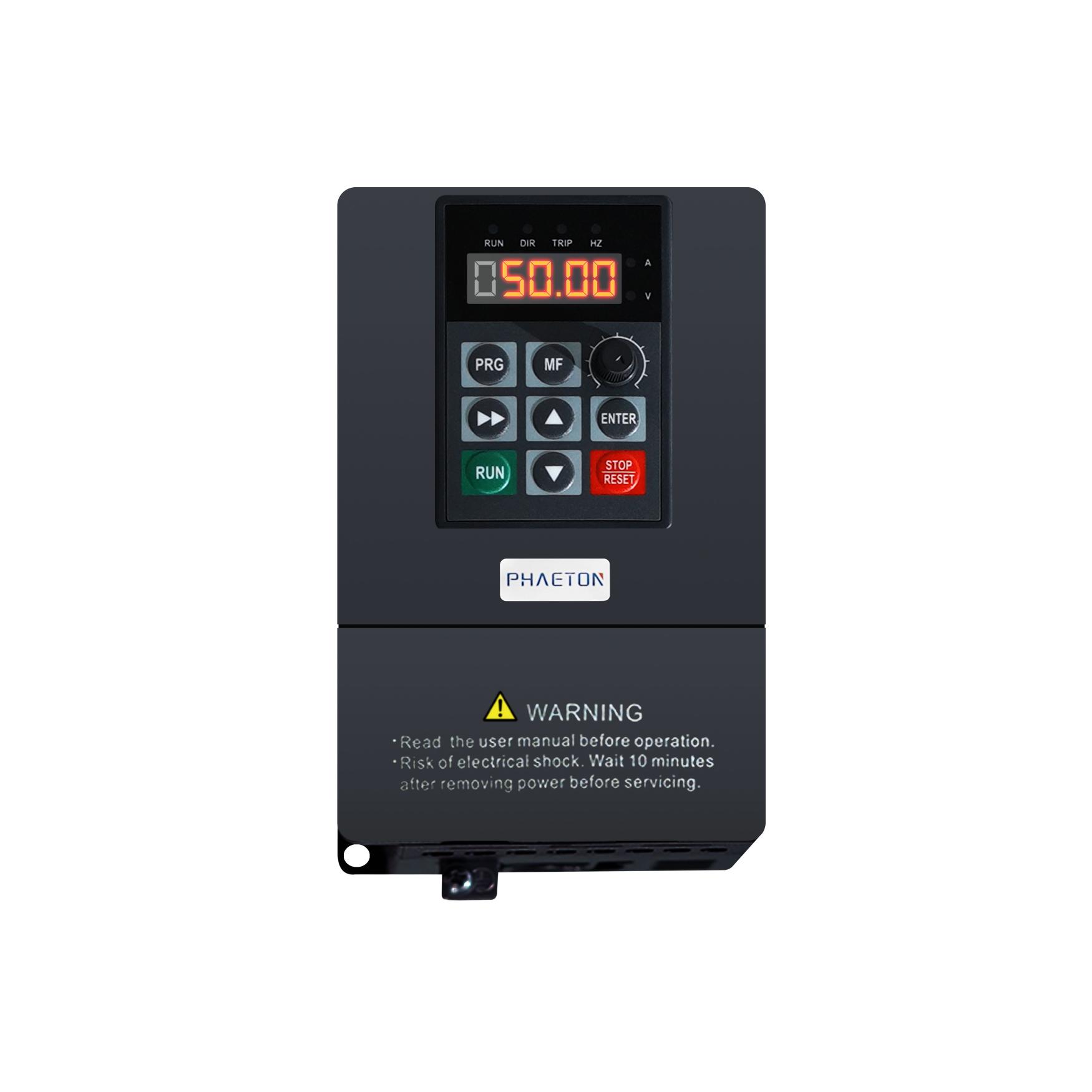

PHAETON 1phase 220V 2.2KW 3HP VFD frequency inverter single phase vfd 220v

Brand: PHAETON

Model No.: PH100-2S-2P2G

Specification: 1Phase 220V 2.2KW 3HP 10A VFD

Application: Industrial automation, motor control, motor speed regulation.

Main Features: ( Power range: 0.75-7.5kw 220v, 0.75-630kw 380v, 440v, 480v)

Powerful hardware design with full materials

All series use IGBT module

Adopts international advanced vector control algorithm

Use the latest generation TI DSP, its computing speed increases 50%

Offers 100% starting torque with sensorless vector control

Complete Protection Function like: under/over voltage, over current, phase missing…

Ease to Use and rich multiple-function terminal

Wide input voltage range,up to ±20%

PHAETON variable frequency drive specifications:

Item		Description
Power input	Voltage, frequency	Single-phase 220V 50/60Hz; Three-phase 380V 50/60Hz Three-phase 220V 50/60Hz ; Three-phase 660V 50/60Hz
	Permissible fluctuation	Voltage: 320V~440V; voltage imbalance rate: 3%; frequency: ±5% Distortion rate is in accordance with IEC61800-2 requirements.
	Switch-on impact current	Less than the rated current
	Power factor	=0.94 (DC reactor is collocated)
	Efficiency of frequency converter	0.96
Output	Output voltage	Output under rated conditions: Three-phase, 0~input voltage; error is less than 5%.

	Scope of output frequency	0-320Hz
	Precision of output frequency	Maximum frequency: ±0.5%
	Overload capacity	150% rated current for 1 minute; 180% rated current for 10 seconds; 200% rated current for 0.5 second.
Main control property	Control model of motor	Open loop vector control ( V/F control

	Modulation model	PWM modulation of optimized space vector
	Carrier frequency	0.6~15.0kHz, modulation of random carrier
	Control scope of speed	Without PG vector control, rated load: 1 : 100 With PG vector control, rated load: 1 : 1000

	Precision of stable rotational speed	Without PG vector control: =1% rated synchronized rotational speed
		With PG vector control: =0.02% rated synchronized rotational speed
	Starting torque	Without PG magnetic flux vector control: under 0.5Hz, 180% rated toque
		With PG magnetic flux vector control: under 0Hz, 200% rated toque
	Torque response	Without PG magnetic flux vector control: =20ms
		With PG magnetic flux vector control: =10ms
	Precision of frequency	Digital setup: Maximum frequency ×±0.01%
		Analog setup: Maximum frequency ×±0.2%
	Resolution of frequency	Digital setup: 0.01Hz
		Analog setup: Maximum frequency ×0.05%
Basic functions of product	DC brake capacity	Starting frequency: 0.00~50.00Hz
		Brake time: 0.0~60.0s
		Brake current: 0.0~150.0% rated current
	Torque hoisting	Automatic torque hoisting: 0.0%~100.0%
		Manual torque hoisting: 0.0%~30.0%
	V/F curve	Five model: One user setup V/F curve model; one linear torque characteristic curve; three reduced torque characteristic curve model (1.3 times, 1.7 times and 2.0 times)

	Acceleration/deceleration curve	Two models: Straight acceleration and deceleration, S curve acceleration and deceleration.

	Rated output voltage	Usage of power voltage compensation function; rated voltage of motor: 100%; setup between 50%--100% scope (output does not exceed the input voltage)

	Automatic voltage adjustment	In case of voltage fluctuation in the grid, it can automatically maintain the output voltage constant
	Automatic energy-saving operation	According to the load, it automatically optimizes the output voltage and realizes energy-saving operation
	Automatic current limitation	It automatically limits the current in the normal operation and prevents frequent over-current and fault tripping.
	Settlement of	In case of instantaneous power cutoff, it is controlled by busbar voltage and uninterrupted operation is realized.
	instantaneous power
	cutoff
	Standard function	PID control, rotational speed tracking and re-start upon power cutoff; skipping frequency, control of upper and lower frequency limits, procedure operation, multi-section speed, pendulum frequency operation, RS 485, analog output and frequency pulse output


	Frequency setup tunnel	Setup of keyboard figure, keyboard potentiometer, analog voltage terminal

	Feedback input tunnel	Voltage terminal VS1, voltage terminal V2S, current terminal AS, communication setup and pulse input PUL
	Operation command tunnel	Setup of operation panel, external terminal and communication
	Input command signal	Start, shutdown, positive and reverse rotation, inching operation, multi-section speed, free parking, reset, selection of acceleration and deceleration time
	External output signal	One relay output, two integrated electrode output, 0~10V output, 4~20mA output, frequency pulse output
Protective function		Over-voltage, under-voltage, current amplitude, over-current, overload,
		electronic heat relay, overheat, over-voltage lose-of-speed, data protection
Keyboard display	LED display	Display of one-way 4-digit digital pipe	Surveillance of status volume of one frequency converter



		Display of two-way 4-digit digital pipe	Surveillance of status volume of two frequency converters
	Parameter copy	It can upload and download functional code information of frequency converter and realize swift duplication of parameters.
		Output frequency, set frequency, output current, input voltage, output voltage, rotational speed of motor, PID feedback volume, PID set volume, module
	Status surveillance	temperature and input/output terminal status.
	Fault alarm	Over-voltage, under-voltage, over-current, short circuit, phase deficiency, overload, overheat, over-voltage loss-of-speed, current amplitude, data protection damage, operation status of existing fault and historical fault
Environment	Installation area	Indoor altitude is not above 1000m; no corrosive gas or direct sunshine is witnessed.
	Temperature and humidity	-10 ~ +50°C 20% — 95% RH (without dewing)
	Vibration	Less than 0.5g below 20 Hz
	Storage temperature	-25 — +60°C
	Installation model	Wall-mounted type, cabinet type
	Protective level	IP20
	Cooling model	Forced air cooling
