IP54 waterproof 220V 3HP solar pump inverter solar drive

Model NO :

PH480-2S-2P2G

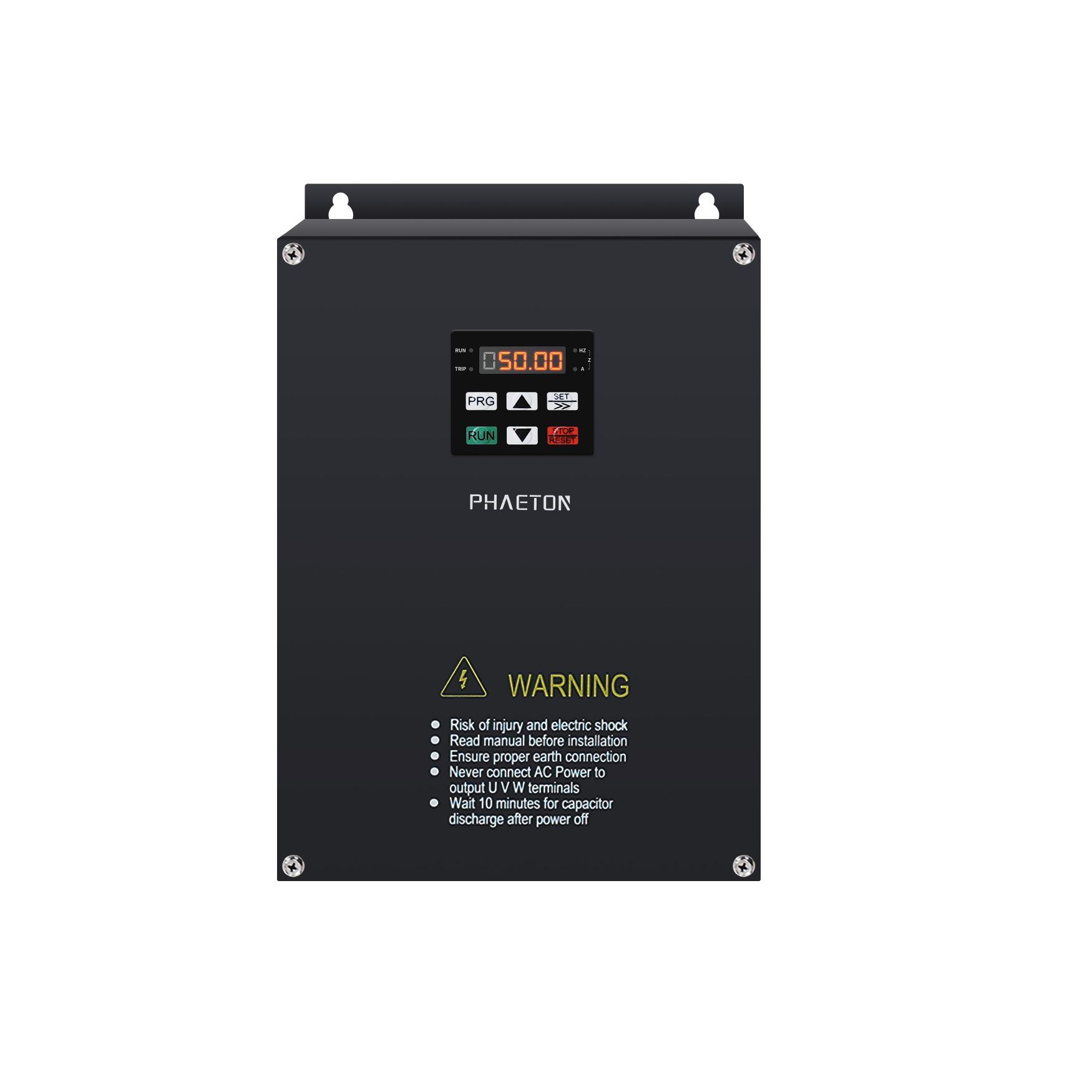

220V 2.2KW 3HP solar drive IP54 waterproof hybrid solar pump inverter for solar pumping irrigation

Quantity :

add to cart

Contact Now

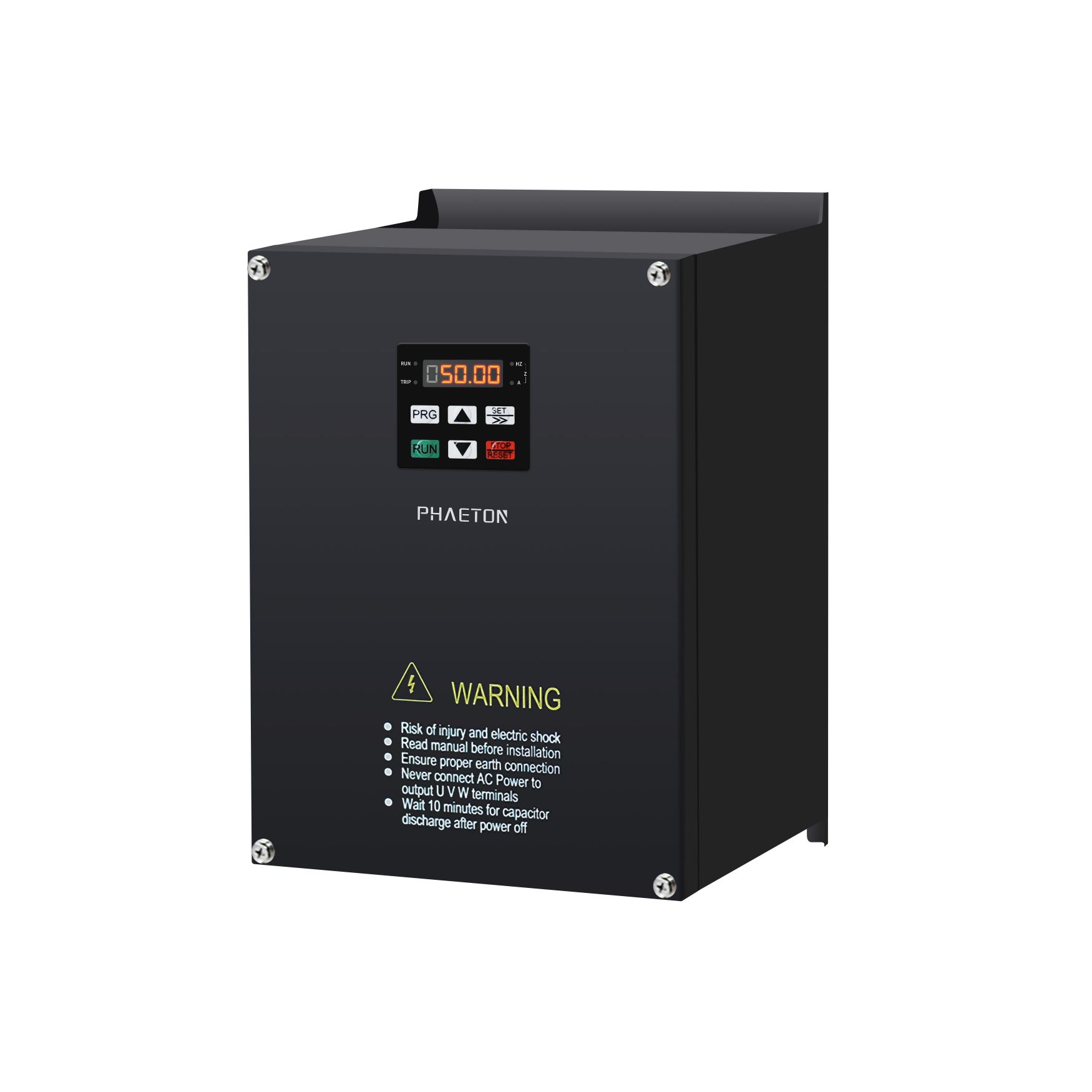

PHAETON IP54 waterproof 220V 3HP solar pumping inverter solar drive

Brand: PHAETON

Model No.: PH480-2S-2P2G

Input Voltage 150-450VDC, 220VAC

Output Voltage: 1/3phase 220VAC

Power: 2.2KW

Current: 10A

Waterproof: IP54

Solar Panels selection: Voc 375VDC.

Motor selection: 220V 1/3phase motor, pumps.

Certificate: CE, IEC.

The main features for PH380 series solar pump inverters:

1. Hybrid function to accept solar DC and grid AC input at same time, Grid AC automatic compensation.

2. Wide input voltage range:

220V model: DC 150-450V ( DC 80-450V for 110V, 160V motor).

380V model: DC 350-800V. 440V, 480V mode: DC 250-900V.

3. Drives well 220V single phase pump, 3phase pump.

4. Stable running and low frequency fluctuation.

5. All-round protection and inverter no burn.

6. Automatically start and stop function.

7. Adapt to various pumps, like AM, PMSM, submersible pump, surface pump etc.

Wiring explanation for water and dry run sensor:

(1) Connect 2 wires of float ball sensor to DI4 and COM for water tank level fulling detecting,

and set P4-03=51( float ball NO relay alarm). When water level reached to sensor detecting,

the normal open (NO) relay point will be activated, invereter will stop pumping, and sent a A.FuL alarm.

(2) Connect 2 wires of sensor of dry run sensor of well to DI5 and GND, and set P4-04=52 ( dry run NC relay alarm).

It will sent alarm A.LLd and stop pumping when lack of water in well for dry run protection.

(3) It is also enable to connect analog ( 0-10VDC, or 0/4-20mA) water level sensor for water tank leveling detecting.

(4) Connecting 2 wires of 0/4-20mA analog sensor to AI1 and 24VDC terminals of inverter,

and short connect COM and GND terminals for constructing a loop circuit.

PHAETON IP54 PH480 solar pump inverter Model Number:

Model Number	Inverter rated Power (KW)	Inverter rated current (A)	Input DC voltage VOC (VDC)	Output Voltage (VAC)	Inverter size HWD (mm)	Inverter G.W. (kg)
PH480-2S-1P5G	1.5KW	7A	150-450VDC	0-240VAC	245*160180	5
PH480-2S-2P2G	2.2KW	10A	150-450VDC	0-240VAC	245*160180	5
PH480-2S-004G	4KW	17A	150-450VDC	0-240VAC	320215190	7
PH480-2S-5P5G	5.5KW	25A	150-450VDC	0-240VAC	320215190	5
PH480-4T-004G	4KW	10A	150-450VDC	0-240VAC	245*160180	5
PH480-4T-5P5G	5.5KW	13A	350-800V,900VDC	0-440VAC, 480VAC	320215190	7
PH480-4T-7P5G	7.5KW	17A	350-800V,900VDC	0-440VAC, 480VAC	320215190	7
PH480-4T-011G	11KW	25A	350-800V,900VDC	0-440VAC, 480VAC	320215190	7
PH480-4T-015G	15KW	32A	350-800V,900VDC	0-440VAC, 480VAC	410275200	13
PH480-4T-018G	18.5KW	37A	350-800V,900VDC	0-440VAC, 480VAC	410275200	13
PH480-4T-022G	22KW	45A	350-800V,900VDC	0-440VAC, 480VAC	410275200	16
PH480-4T-045G	45KW	910A	350-800V,900VDC	0-440VAC, 480VAC	670410340	40

What is a Solar Pump Inverter?

A solar pump inverter is a specialized device that converts the DC power generated by solar panels into AC power to drive water pumps. It optimizes energy usage based on sunlight intensity, ensuring efficient water pumping without the need for batteries or grid electricity.

PHAETON solar pump inverter Key Features:

MPPT (Maximum Power Point Tracking) – 99% efficiency
Energy-efficient – Directly powers pumps using solar energy.
Battery-free operation – Reduces system costs and maintenance.
All kind of protections – Dry run, water tank detection, overload, overcurrent protections to protect motor and inverter
Wide applications – Used in irrigation, livestock watering, and remote water supply.

Example:

A: What's the advantage of a solar pump inverter compared to a traditional pump system?
B: It eliminates reliance on grid electricity or diesel generators, reducing costs and environmental impact. Plus, it adjusts pump speed based on solar power availability.

A: Can it work on cloudy days?
B: Yes, but with reduced efficiency. so select PHAETON hybrid solar pump inverter, which can solar DC and Grid AC inup at same time and compensation can be achieved when lacking of solar power. but solar dc is priority.

PHAETON PH380 IP54 solar pump inverter Model Number:

S.N.	Model Number	Current (A)	Voltage (V)	Power (KW)	Measurement (MM)	Suggest VOC (VDC)	G.W.
IP54 2S series: 150-450VDC, 1phase 220VAC input, 1/3phase 220VAC output
1	PH380-2S-1P5G-S	7A	0-250VAC	1.5KW	315230249	260 to 375	5
2	PH380-2S-2P2G-S	10A	0-250VAC	2.2KW	315230249	260 to 375	5
3	PH380-2S-004G-S	17A	0-250VAC	4.0KW	390289270	260 to 375	7.5
4	PH380-2S-5P5G-S	25A	0-250VAC	5.5KW	390289270	260 to 375	7.5
IP54 4T series: 250-800V/900VDC input, 3phase 0-380V,440/480VAC output
1	PH380-4T-2P2G-S	7A	0-480VAC	2.2KW	315230249	486 to 750	5
2	PH380-4T-004G-S	10A	0-480VAC	4KW	315230249	486 to 750	5
3	PH380-4T-5P5G-S	13A	0-480VAC	5.5KW	390289270	486 to 750	7.5
4	PH380-4T-7P5G-S	17A	0-480VAC	7.5KW	390289270	486 to 750	7.5
5	PH380-4T-011G-S	25A	0-480VAC	11KW	390289270	486 to 750	7.5
6	PH380-4T-015G-S	32A	0-480VAC	15KW	490355280	486 to 750	12
7	PH380-4T-018G-S	37A	0-480VAC	18KW	490355280	486 to 750	12
8	PH380-4T-022G-S	45A	0-480VAC	22KW	490355280	486 to 750	13
9	PH380-4T-030G-S	60A	0-480VAC	30KW	590385310	486 to 750	22
10	PH380-4T-037G-S	75A	0-480VAC	37KW	590385310	486 to 750	22
11	PH380-4T-045G-S	91A	0-480VAC	45KW	670385350	486 to 750	45
