1phase 220V to 3phase 380V phase converter

Model NO :

PH380-2S4T-5P5G

1phase 220V to 3phase 380V phase converter, can 350VDC to 800VDC input, drives well 380V motos with 220V home grid power, 2.2KW to 18.5KW

Quantity :

add to cart

Contact Now

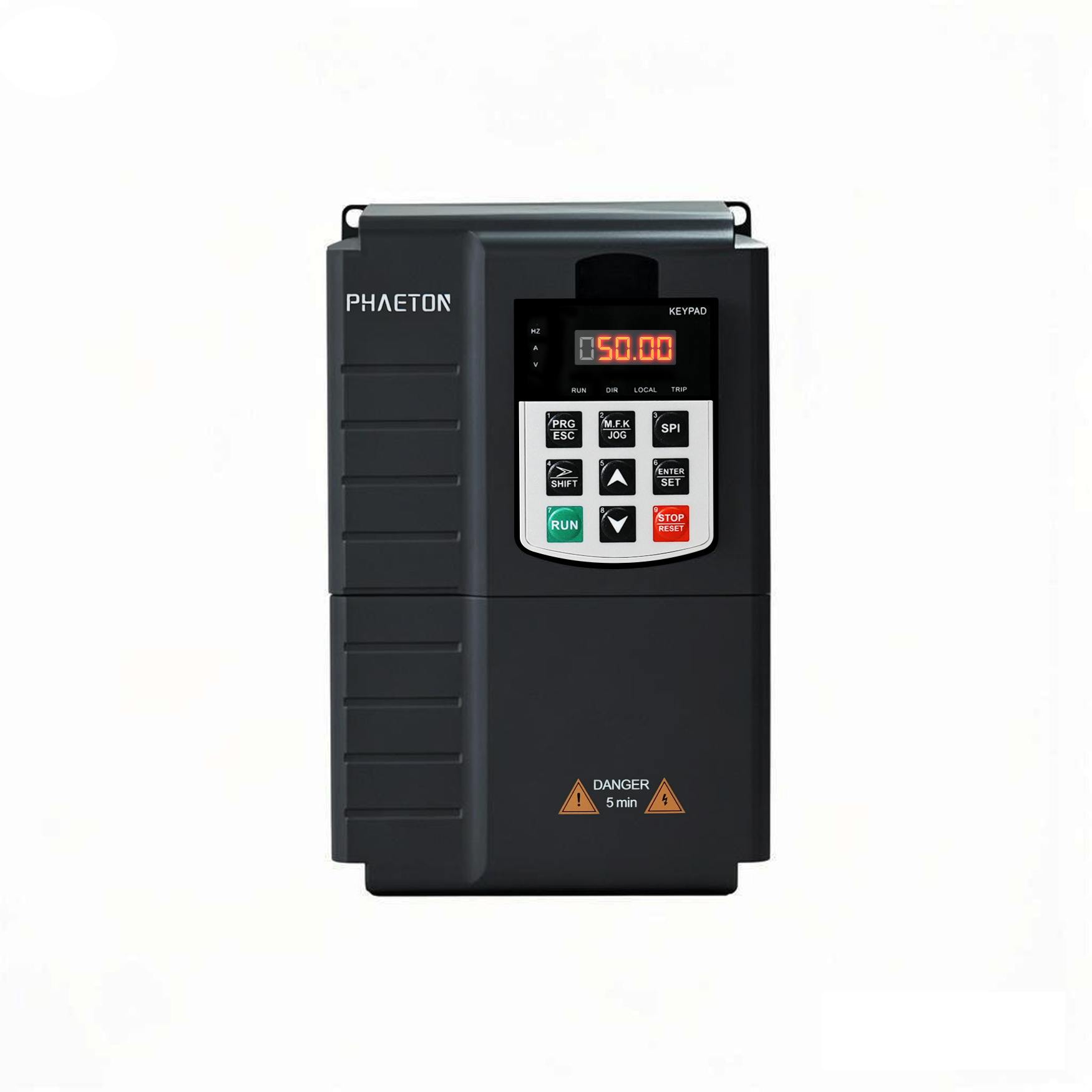

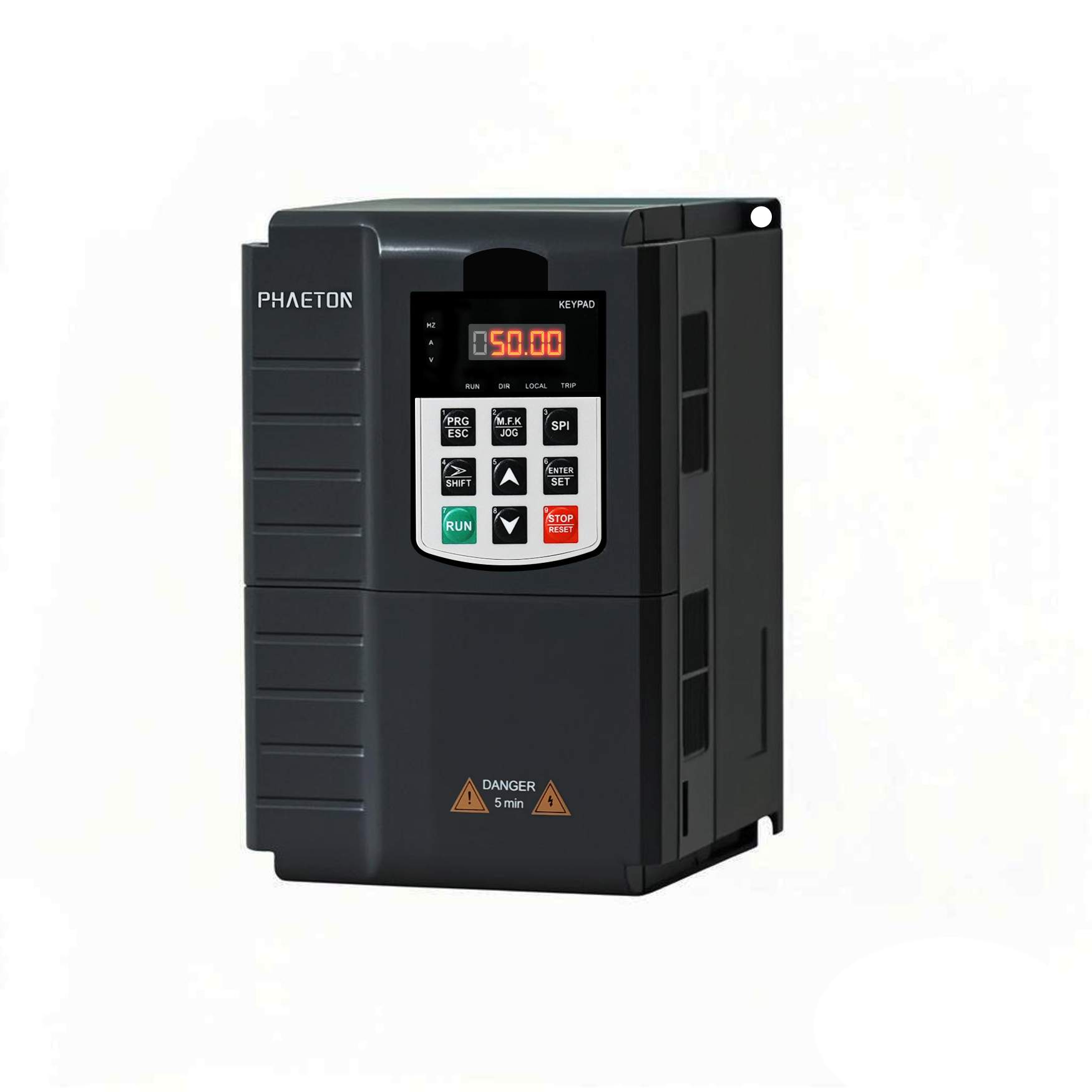

PHAETON 1phase 220v to 3phase 380v phase converter

Brand: PHAETON

Model No.: PH380-2S4T-5P5G

Input Voltage: 1phase 220VAC

Output Voltgae: 3phase 380VAC

Rated Power: 5.5KW 13A

Application: Industrial automation, motor control, motor speed regulation, solar pumping.

Optional function: 350-800VDC input

Phase Converter Main Features: ( Power range: 2.2KW to 18KW)

1. 1phase 220V input and 3phase 380V output, drives well 3phase 380V motor with 220v home grid power.

2. from 2.2KW to 18KW, heavy duey.

3. Solar DC input is optional.

4. Powerful hardware design with full materials

5. All series use IGBT module

6. Adopts international advanced vector control algorithm

7. Use the latest generation TI DSP, its computing speed increases 50%

Offers 100% starting torque with sensorless vector control

Complete Protection Function like: under/over voltage, over current, phase missing…

8. Ease to Use and rich multiple-function terminal

9. Wide input voltage range,up to ±20%

PH380-2S4T series : 1PHASE 220VAC input, 3phase 380VAC output
S.N.	Model No	Rated current	Rated power	Input Votage	Output Voltage	Size (mm)	G.W. (KG)
1	PH380-2S4T-2P2G	5A	2.2KW	1phase 220V	3phase 380V	185118153.8	2
2	PH380-2S4T-004G	10A	4KW	1phase 220V	3phase 380V	247160175	4
3	PH380-2S4T-5P5G	13A	5.5KW	1phase 220V	3phase 380V	247160175	4
4	PH380-2S4T-7P5G	17A	7.5KW	1phase 220V	3phase 380V	247160175	4
5	PH380-2S4T-011G	25A	11KW	1phase 220V	3phase 380V	320220197.3	7
6	PH380-2S4T-015G	32A	15KW	1phase 220V	3phase 380V	320220197.3	7
7	PH380-2S4T-018G	37A	18KW	1phase 220V	3phase 380V	320220197.3	7.5
